Rear Seat RH - SuperCab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat RH seatbelt anchor bolt and position aside the seatbelt.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

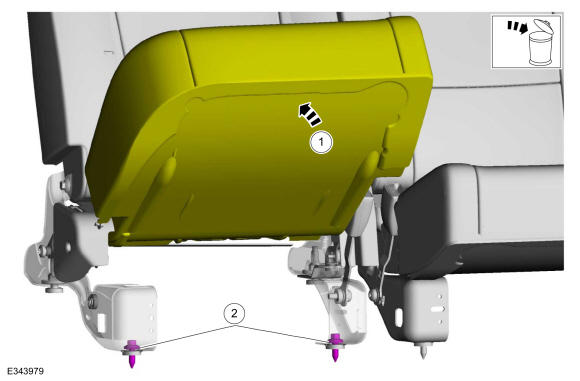

Remove and discard the rear seat RH front bolts.
1. Raise the rear seat RH cushion.
2. Remove the rear seat RH front bolts.
  Torque

  : 35 lb.ft (47.5 Nm)
Courtesy of FORD MOTOR COMPANY

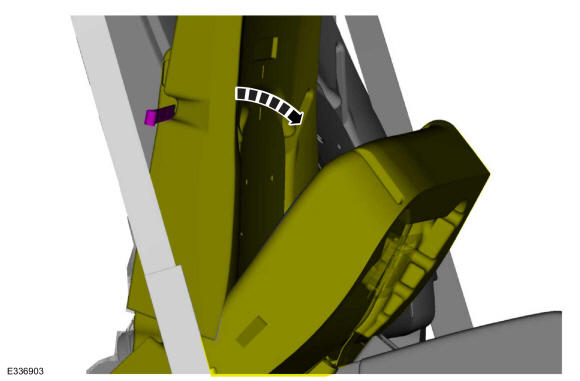

Pull the backrest release strap and fold the rear seat RH backrest down.

Courtesy of FORD MOTOR COMPANY
1. Remove the vehicle jack tie down retainer.
2. Position the vehicle jack tie down aside.
3. Remove the vehicle jack.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the rear seat electrical connectors.
2. Disconnect the rear seat electrical connector wire retainer.
Courtesy of FORD MOTOR COMPANY

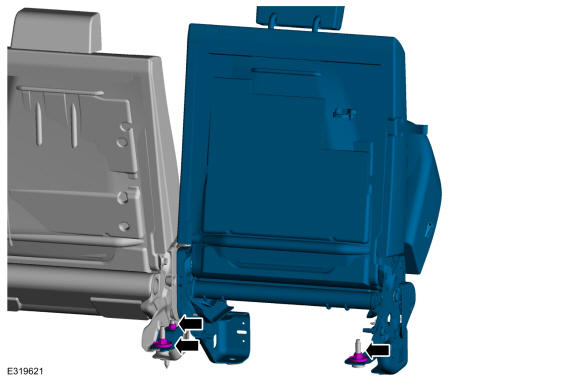

Remove the rear seat RH nuts and remove the rear seat RH.
Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
