Rear Seat LH - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat RH. Refer to: Rear Seat RH - SuperCrew .

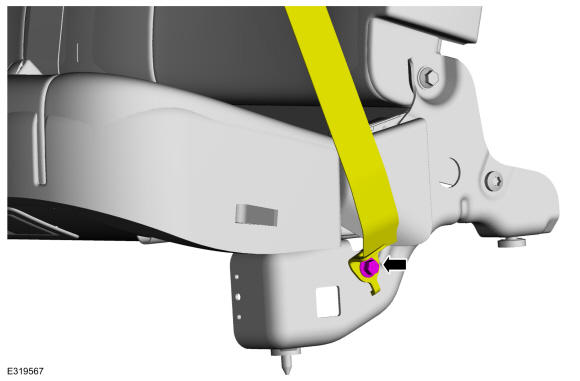

Remove the rear seat LH seatbelt anchor bolt and position aside the seatbelt.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The rear seat cushion must be unlocked to perform this step if vehicle has rear under seat storage.

Raise the rear seat LH cushion.

Courtesy of FORD MOTOR COMPANY

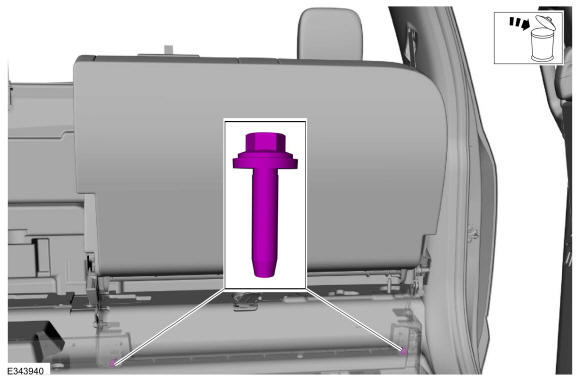

Remove and discard the rear seat LH front bolts.
Torque

: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation the striker should be in its lowest position for the latch to engage.

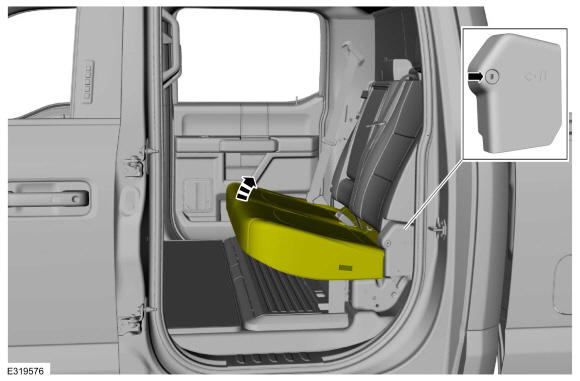

Release and lower the LH rear seat backrest.
1. Raise the rear seat cushion.
2. Release the rear seat backrest latch.
3. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the subwoofer speaker. Refer to: Subwoofer Speaker .

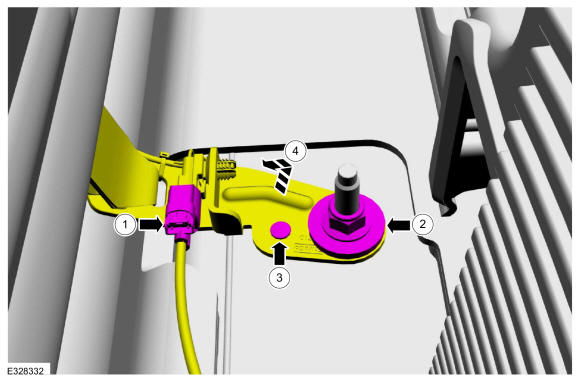

Position the rear center seatbelt anchor/buckle assembly aside.
1. Disconnect the electrical connector.
2. Remove the nut.
  Torque

  : 59 lb.ft (80 Nm)
3. Remove the pin-type retainer.
4. Position the rear center seatbelt anchor/buckle assembly aside.
Courtesy of FORD MOTOR COMPANY

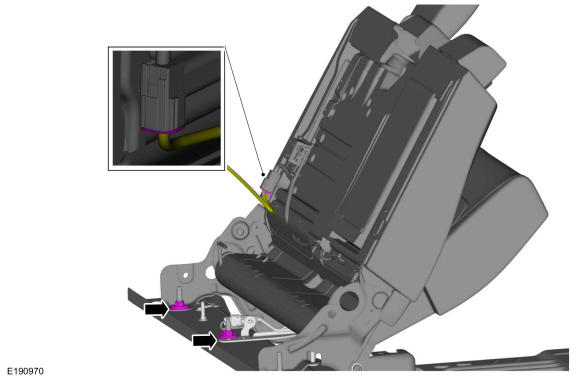

Disconnect the rear seat heated seat electrical connector (if equipped) and remove the LH rear seat nuts.
Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

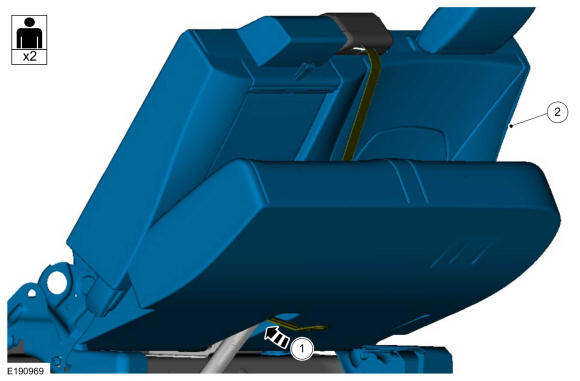

Remove the rear seat LH.
1. Route the center seatbelt through the cushion opening.
2. Remove the seat.

Courtesy of FORD MOTOR COMPANY
