Rear Seat Backrest Cover - SuperCab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH (left-hand) shown in illustration, RH (right-hand) similar.

Remove the rear seat backrest. Refer to: Rear Seat Backrest - SuperCab .
Remove the rear seat head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .
Release the rear seat backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
On both sides, unzip the rear seat backrest cover.

Courtesy of FORD MOTOR COMPANY

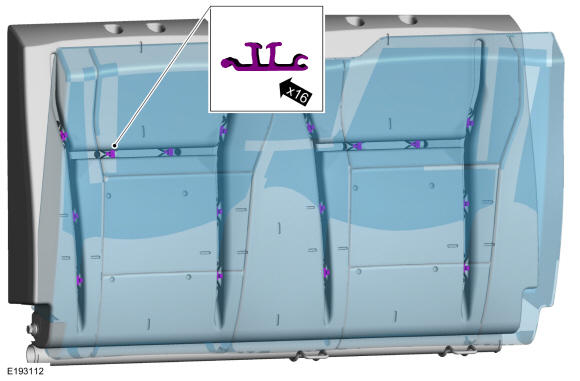

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the rear seat backrest foam.

Release the hook-and-arrows and remove the rear seat backrest cover from the foam pad.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

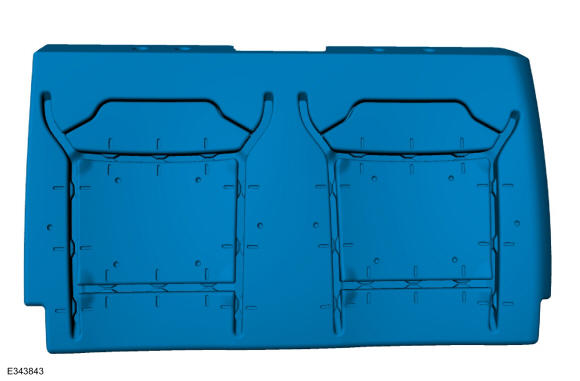

Remove the rear seat backrest foam.

Courtesy of FORD MOTOR COMPANY
