Rear Head Restraint Guide Sleeve: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH (left-hand) seat shown in illustration, RH (right-hand) similar.
-
NOTE: Follow the unique instructions or graphics for this step in installation.

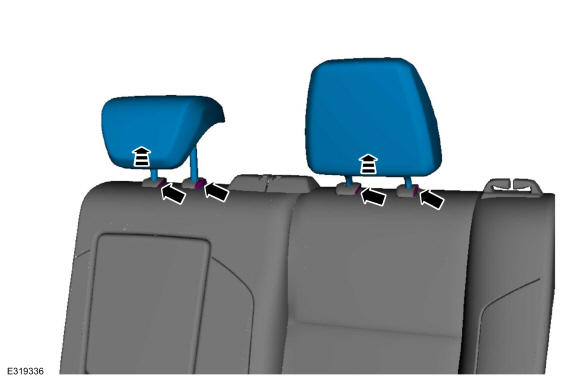

While pressing the primary and secondary rear head restraint release buttons, lift and remove rear head restraint(s).
-

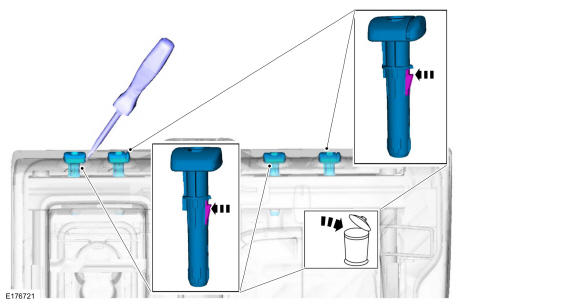

NOTE: Typical head restraint guide sleeve shown in illustration, others similar.
Release the rear head restraint guide sleeve locking tabs. Remove the rear head restraint guide sleeve and discard. Use the General Equipment: Flat Headed Screw Driver
