Heated Rear Seat Switch - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

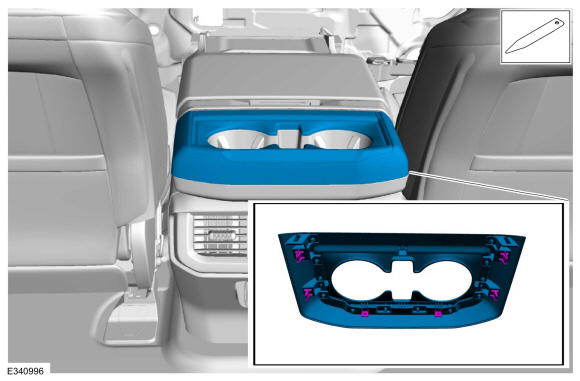

  1. Release the locking clips and remove the rear seat cup holder trim. Use the General Equipment: Interior Trim Remover
    GFD561867Courtesy of FORD MOTOR COMPANY

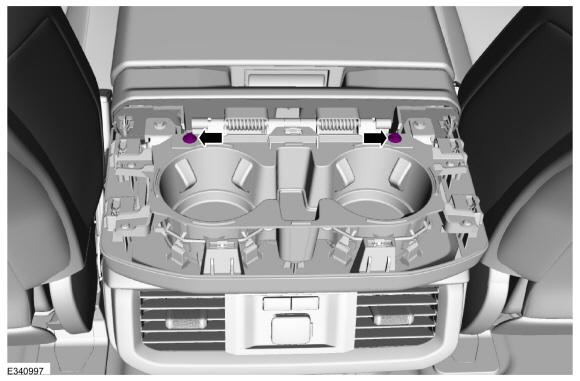

  2. Remove the rear seat cup holder screws.

    Torque

    : 44 lb.in (5 Nm)

    GFD561868Courtesy of FORD MOTOR COMPANY

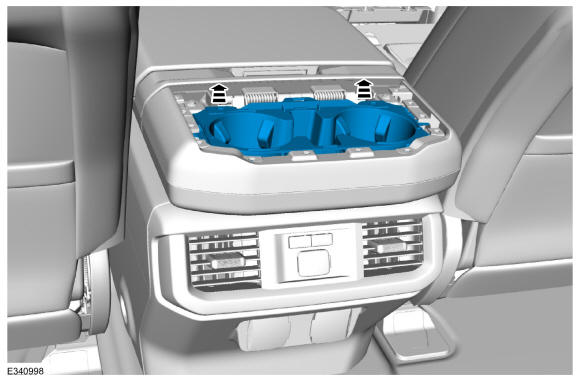

  3. Remove the rear seat cup holder.
    GFD561869Courtesy of FORD MOTOR COMPANY

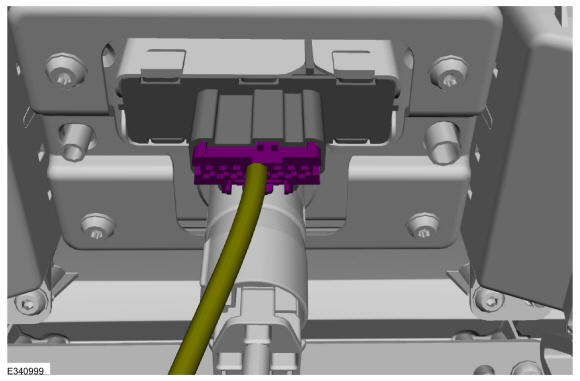

  4. Disconnect the heated rear seat switch electrical connector.
    GFD561870Courtesy of FORD MOTOR COMPANY

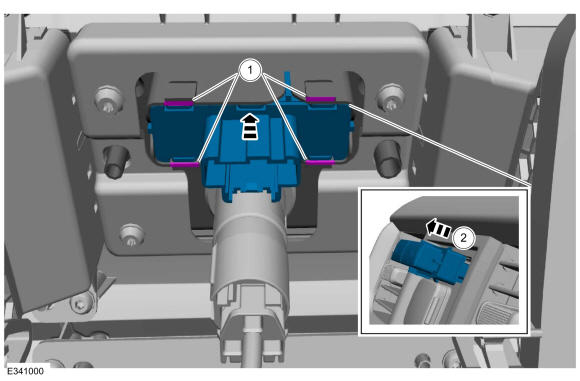

  5. Remove the heated rear seat switch.

    1. Release the heated rear seat switch tabs.
    2. Slide the heated rear seat switch forward.

GFD561871Courtesy of FORD MOTOR COMPANY
