Heated Rear Seat Module - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation the striker should be in its lowest position for the latch to engage.

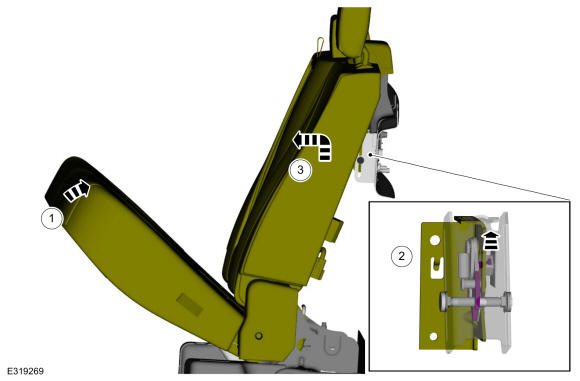

Release and lower the rear seat LH seat backrest.
1. Raise the seat cushion.
2. Release the seat backrest latch.
3. Lower the backrest.
Courtesy of FORD MOTOR COMPANY

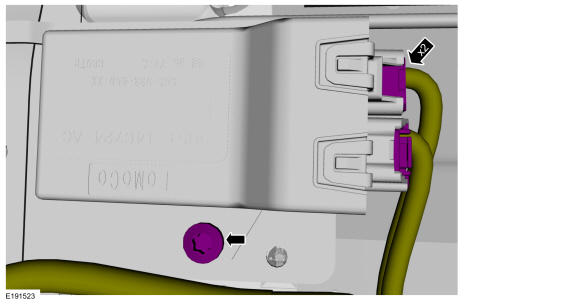

Disconnect the electrical connectors and remove the heated rear seat module screw.

Courtesy of FORD MOTOR COMPANY

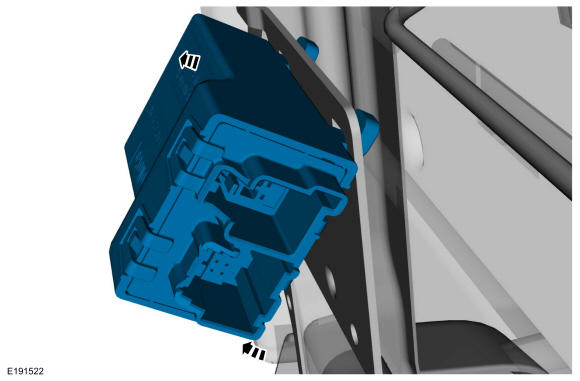

Rotate and remove the heated rear seat module.

Courtesy of FORD MOTOR COMPANY
