Rear Door Window Glass - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door glass top run. Refer to: Rear Door Glass Top Run - SuperCrew .
Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .
Remove the rear door window control switch. Refer to: Rear Door Window Control Switch - SuperCrew, Vehicles With: Rear Power Windows .

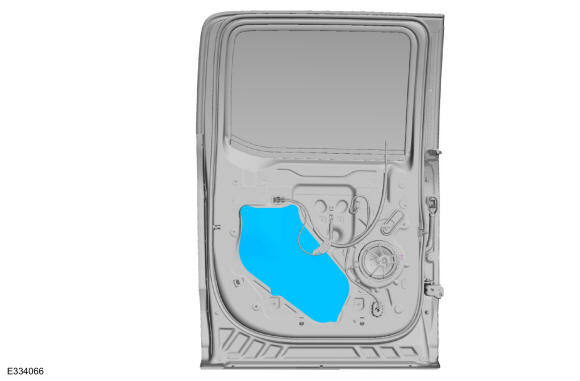

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

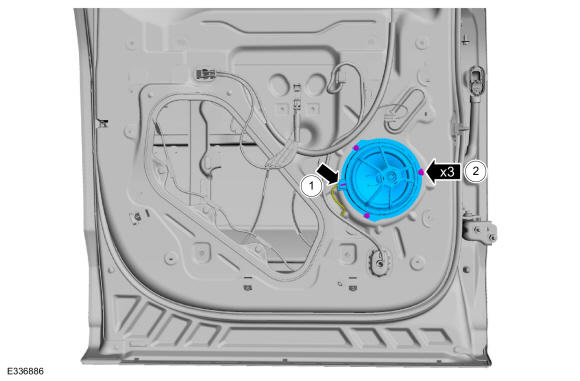

Remove the rear door speaker.
1. Disconnect the rear door speaker electrical connector.
2. Remove the screws and the rear door speaker.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

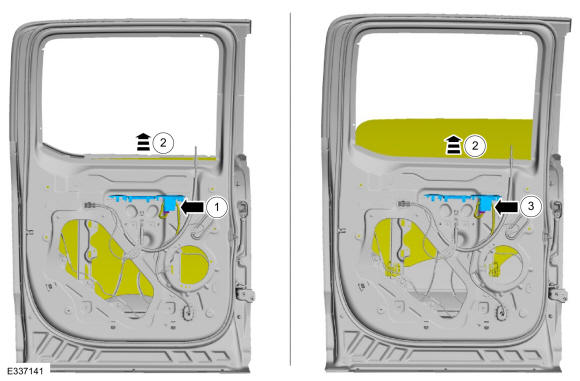

Raise the rear door window glass to the one third up position.
1. Connect the rear door window control switch.
2. Raise the rear door window glass to the one third up position.
3. Remove the rear door window control switch.
Courtesy of FORD MOTOR COMPANY

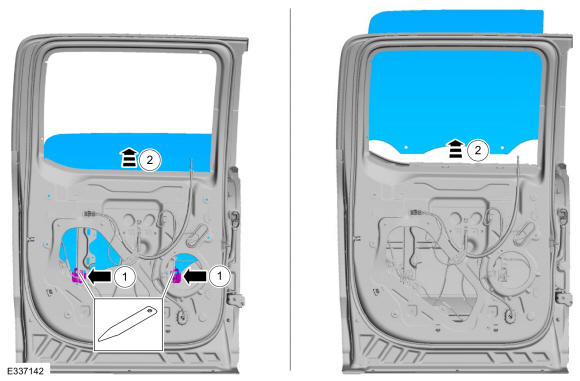

Remove the rear door window glass.
1. Release the rear door window glass retaining clips.
  Use the General Equipment: Interior Trim Remover
2. Remove the rear door window glass.

Courtesy of FORD MOTOR COMPANY
