Rear Door Window Control Switch - SuperCab, Vehicles With: Rear Power Windows: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left hand (LH) shown in illustration, right hand (RH) similar.

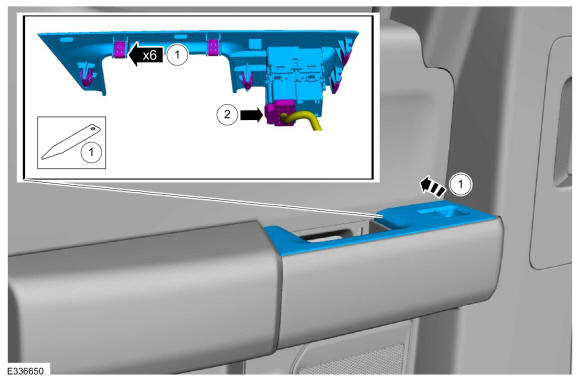

- Remove the rear door window control switch bezel assembly.
- Starting from the front, release the locking tabs from the rear door window control switch bezel assembly.
Use the General Equipment: Interior Trim Remover
- Disconnect the electrical connector and remove the rear door window control switch bezel assembly.
- Starting from the front, release the locking tabs from the rear door window control switch bezel assembly.
-
NOTE: This step is only necessary when installing a new component.

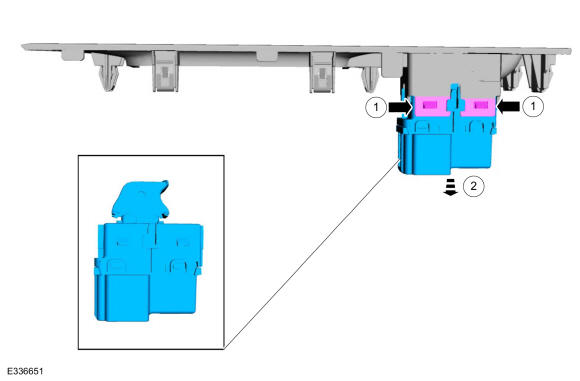

Remove the rear door window control switch from the bezel assembly.
- Release the locking tabs from the rear door window control switch.
- Remove the rear door window control switch from the bezel assembly.
