Rear Door Glass Top Run - SuperCrew: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left hand (LH) shown in illustration, right hand (RH) similar.

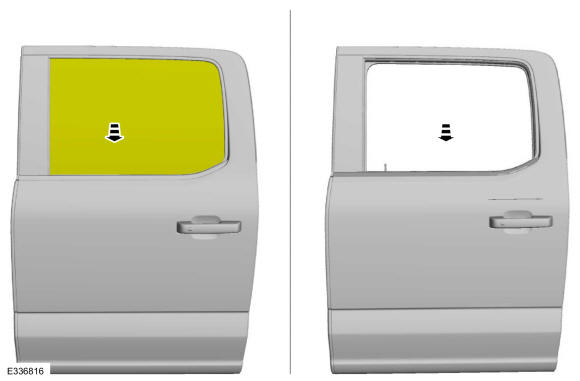

- Lower the rear door window glass to the full down position.
- Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

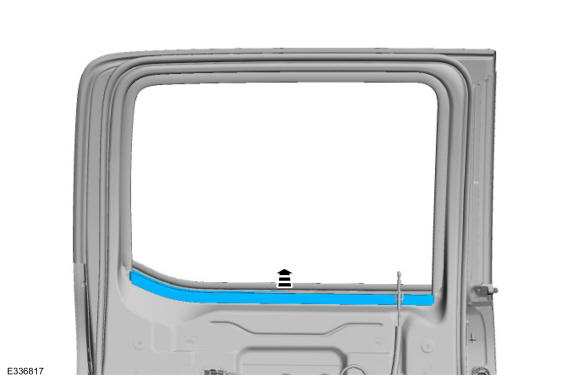

- Remove the rear door inner belt moulding.
- Remove the rear door outer belt moulding.
- Remove the rear door outer belt moulding screw.
- Remove the rear door outer belt moulding.

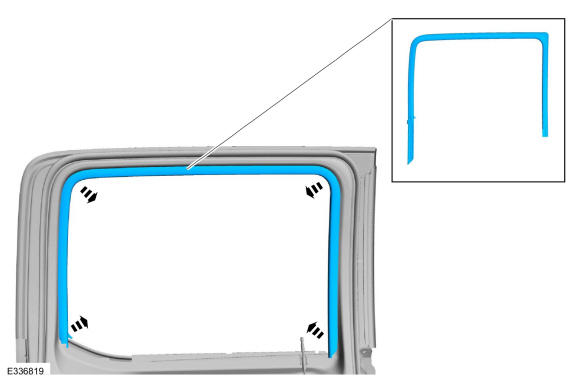

- Remove the rear door glass top run.
