Passenger Door Window Control Switch - Vehicles With: Front Power Windows: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

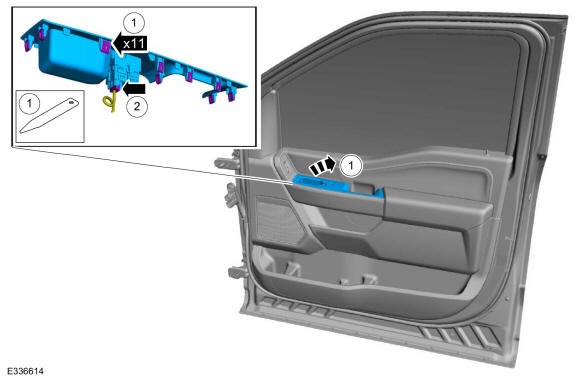

- Remove the passenger door window control switch bezel assembly.
- Starting from the front, release the locking tabs from the passenger door window control switch bezel assembly.
Use the General Equipment: Interior Trim Remover
- Disconnect the electrical connector and remove the passenger door window control switch bezel assembly.
- Starting from the front, release the locking tabs from the passenger door window control switch bezel assembly.
-
NOTE: This step is only necessary when installing a new component.

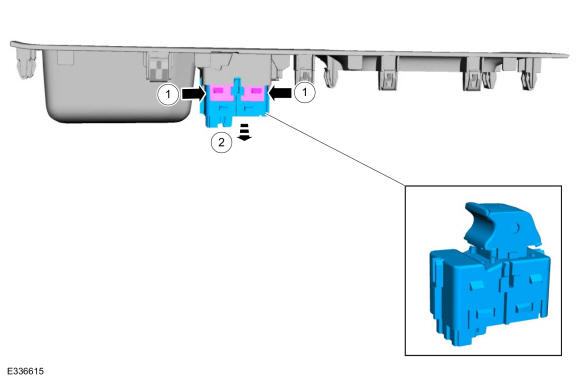

Remove the passenger door window control switch from the bezel assembly.
- Release the locking tabs from the passenger door window control switch.
- Remove the passenger door window control switch from the bezel assembly.
