Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front door window glass. Refer to: Front Door Window Glass .
Remove the exterior mirror. Refer to: Exterior Mirror - Vehicles With: Short Arm Mirrors . Refer to: Exterior Mirror - Vehicles With: Long Arm Mirrors .

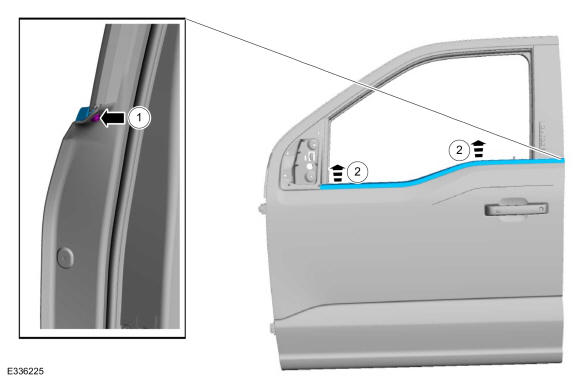

Remove the front door outer belt moulding.
1. Remove the front door outer belt moulding screw.
2. Remove the front door outer belt moulding.
Courtesy of FORD MOTOR COMPANY

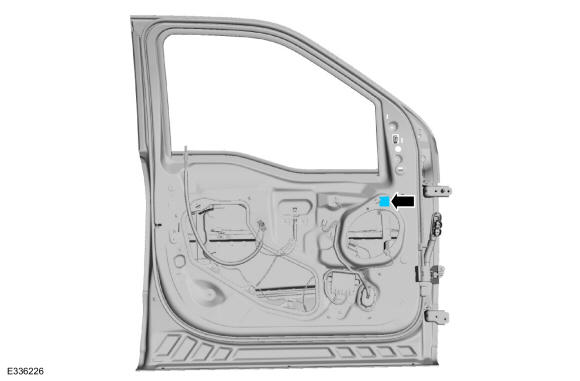

Remove the front door glass top run upper bolt access cover.

Courtesy of FORD MOTOR COMPANY

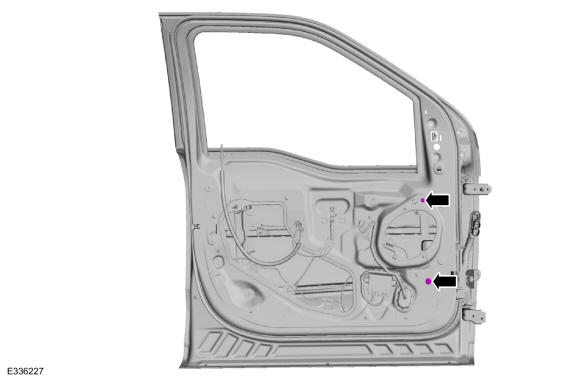

Remove the front door glass top run bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

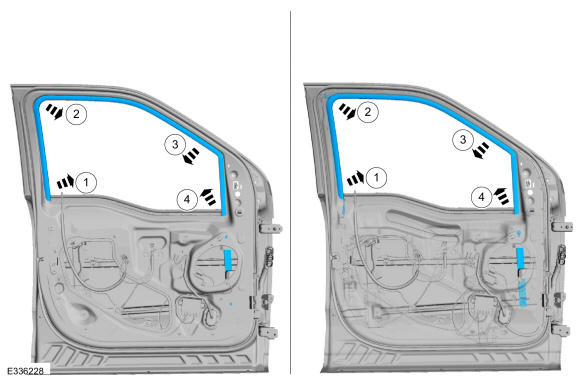

Remove the front door glass top run.
1. Release the front door glass top run from the door run channel.
2. Release the front door glass top run from the door run channel.
3. Release the front door glass top run from the door run channel.
4. Remove the front door glass top run.

Courtesy of FORD MOTOR COMPANY
