Front Door Glass Run and Bracket: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

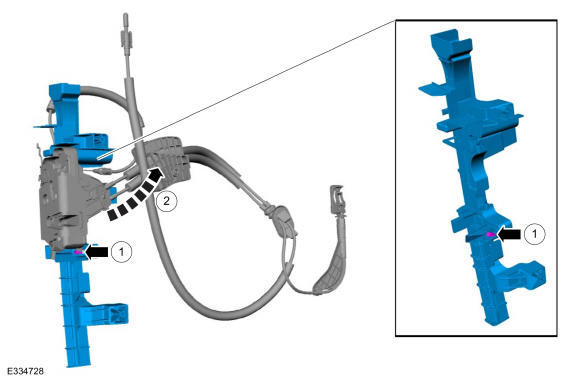

NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the exterior front door handle reinforcement. Refer to: Exterior Front Door Handle Reinforcement .
NOTE: This step is only necessary when installing a new component.

Remove the front door glass run and bracket.
1. Release the retaining tab on the front door glass run and bracket.
2. Remove the front door glass run and bracket.

Courtesy of FORD MOTOR COMPANY
