Fuel Filler Door Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The fuel filler door assembly is damaged during the removal process and requires a new fuel filler door assembly to be installed.

NOTE: Always cover open ports to protect from debris. It is important that no foreign material enter the system.

NOTE: 3.0L Diesel shown in illustration, others similar.

Remove the fuel filler door. Refer to: Fuel Filler Door .

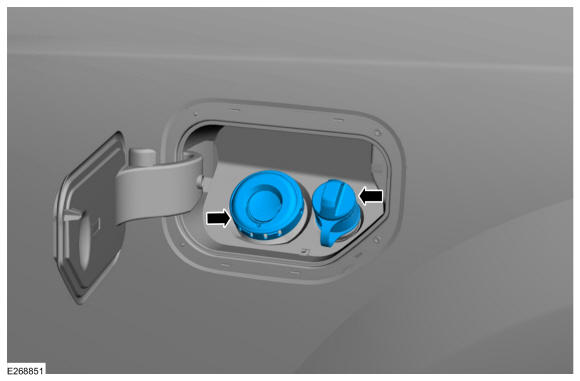

Remove the caps.

Courtesy of FORD MOTOR COMPANY

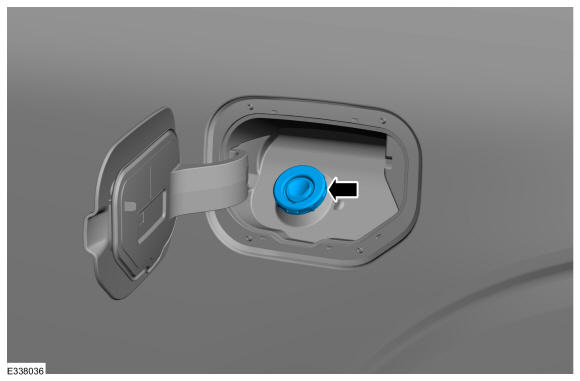

NOTE: Except 3.0L Diesel engine.

Remove the cap.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: 3.0L Diesel shown in illustration, others similar.

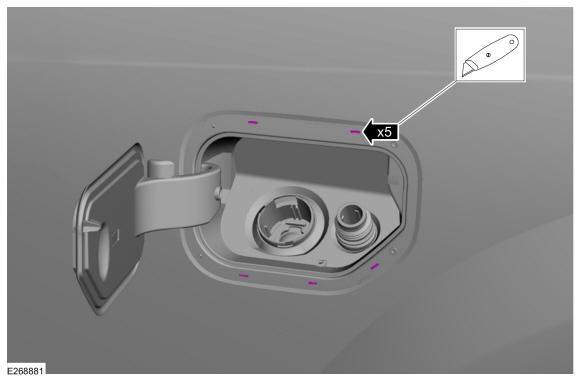

Using a knife, slice through the heat stakes holding the fuel filler molding to the outer sheet metal panel.

Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

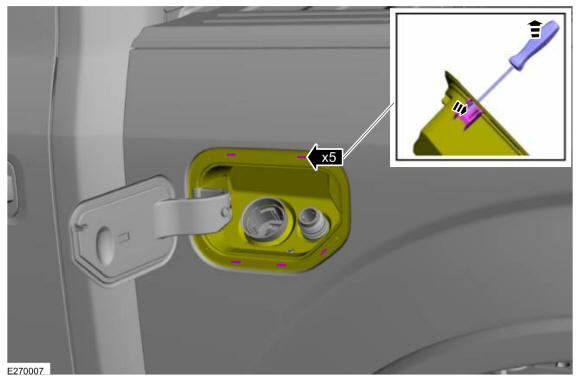

NOTE: Clearance is limited. When all five clips release, the housing can be rotated.

Release the clips while pulling the fuel filler door housing away from the vehicle. Remove the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

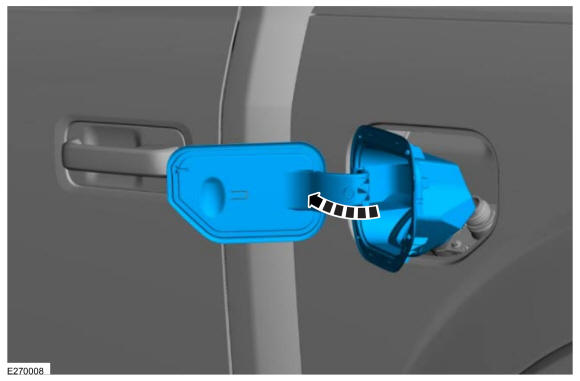

Pull the fuel filler door assembly away from the vehicle and remove.

Courtesy of FORD MOTOR COMPANY
