Front Door Check Arm: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown in illustration, RH side similar.

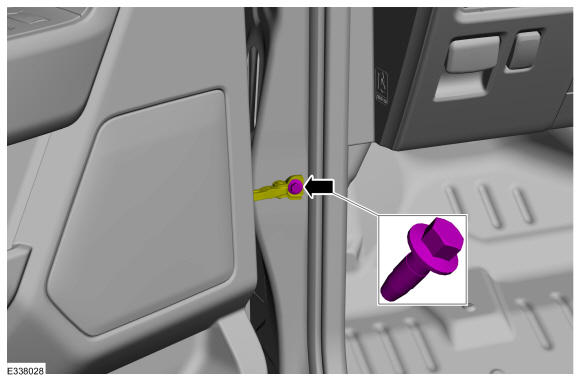

- Remove the check arm bolt.
Torque
: 17 lb.ft (23 Nm)
- Remove the front door speaker. Refer to: Front Door Speaker .

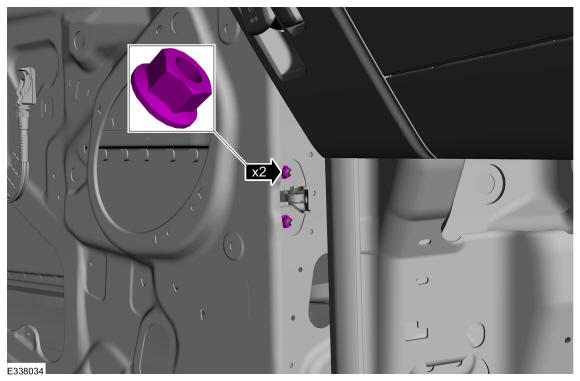

- Remove the nuts.
Torque
: 80 lb.in (9 Nm)

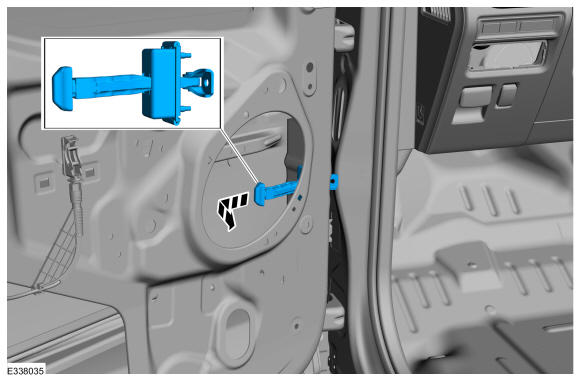

- Remove the check arm assembly.
