Front Door - Regular Cab SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

Open the front door.

Courtesy of FORD MOTOR COMPANY
Remove the check arm bolt.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

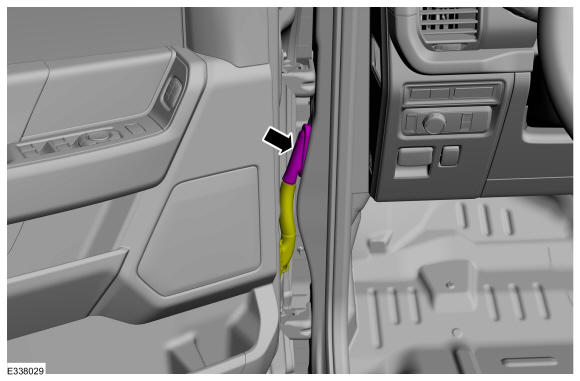

Disconnect the front door electrical connector.

Courtesy of FORD MOTOR COMPANY

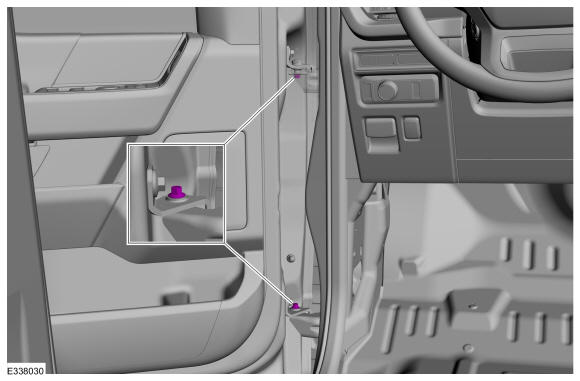

Remove the door hinge pivot bolts.
Use the General Equipment: Door Lift

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: SuperCrew shown in illustration, Regular cab similar.

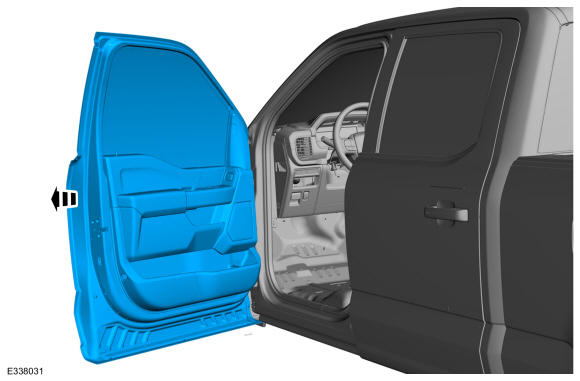

Remove the door.

Use the General Equipment: Door Lift

Courtesy of FORD MOTOR COMPANY
