Rear Door Alignment - SuperCrew: Adjustment

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All alignments

Open the rear door.

Courtesy of FORD MOTOR COMPANY

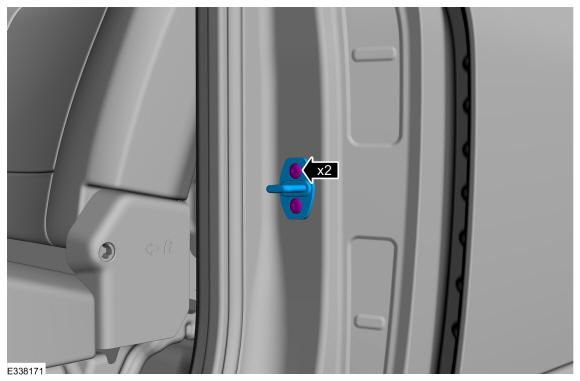

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

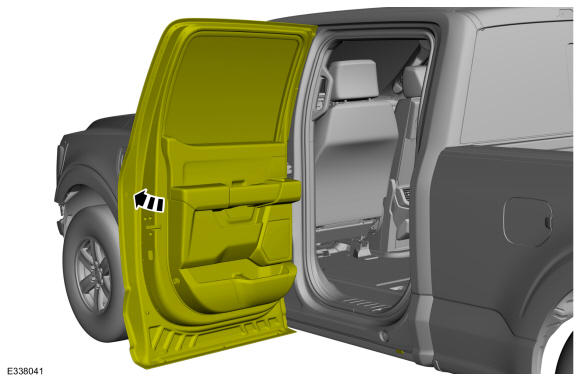

Open the rear door.

Courtesy of FORD MOTOR COMPANY
Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

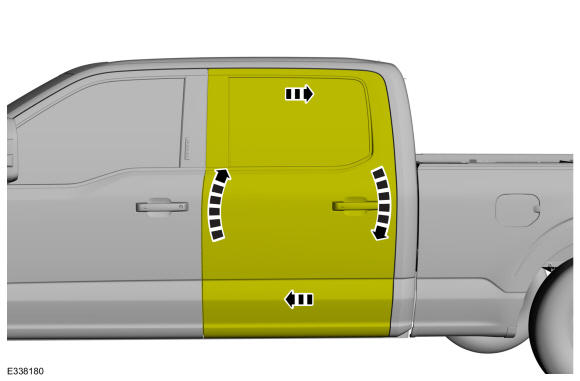

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment
Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .

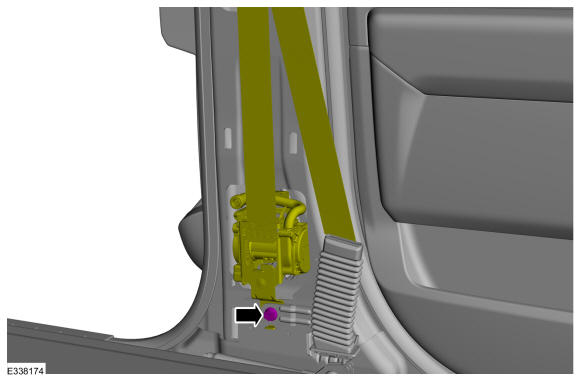

Remove the bolt and position aside the safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

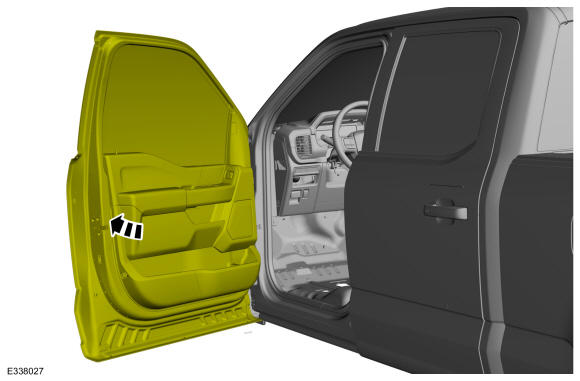

Open the front door.

Courtesy of FORD MOTOR COMPANY

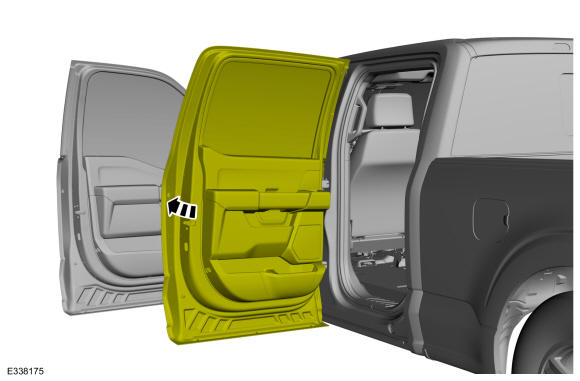

Open the rear door.

Courtesy of FORD MOTOR COMPANY

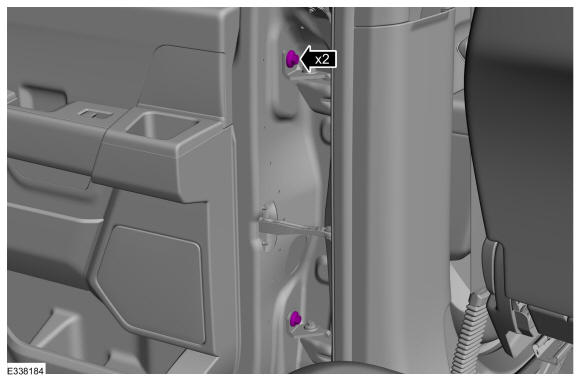

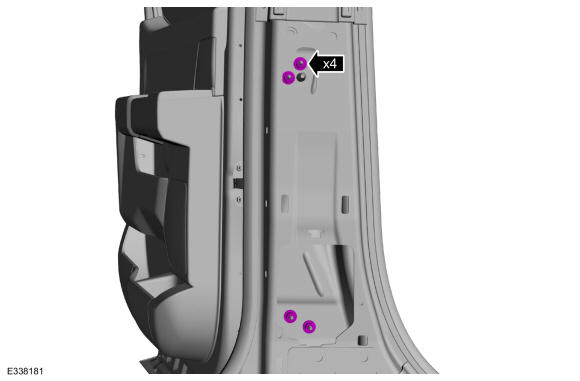

Loosen the nuts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY
Carefully close the rear door.

Courtesy of FORD MOTOR COMPANY
Carefully close the front door.

Courtesy of FORD MOTOR COMPANY
Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the front door.

Courtesy of FORD MOTOR COMPANY
Carefully open the rear door.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque

: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-rear door dimensions.

Courtesy of FORD MOTOR COMPANY
Install the removed components.
- During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
