Rear Door Alignment - SuperCab: Inspection

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.

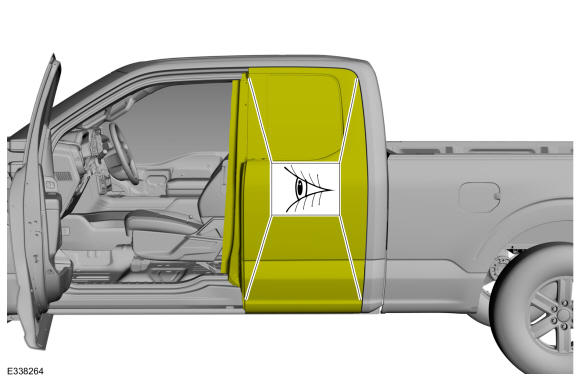

  1. Inspect the rear door-to-body dimensions.
GFD561280Courtesy of FORD MOTOR COMPANY
