Front Door Alignment - Regular Cab SuperCrew: Adjustment

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All alignments

Open the door.

Courtesy of FORD MOTOR COMPANY

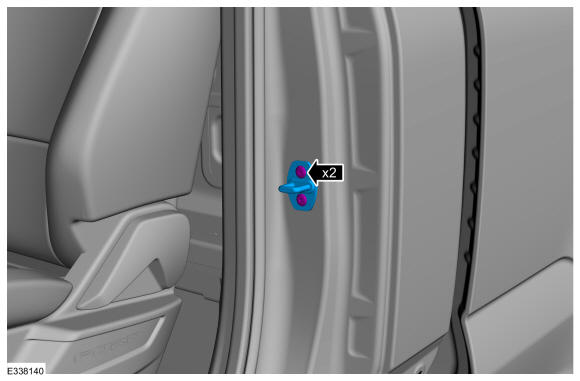

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment
Open the door.

Courtesy of FORD MOTOR COMPANY

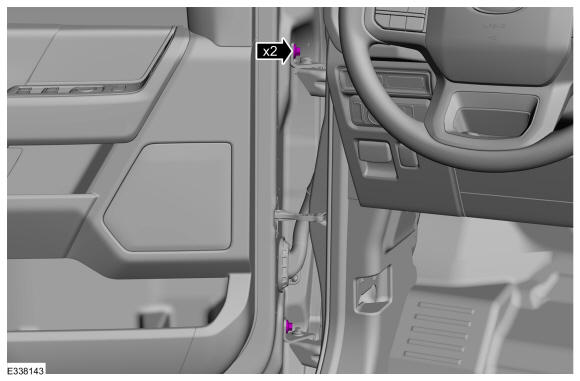

Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

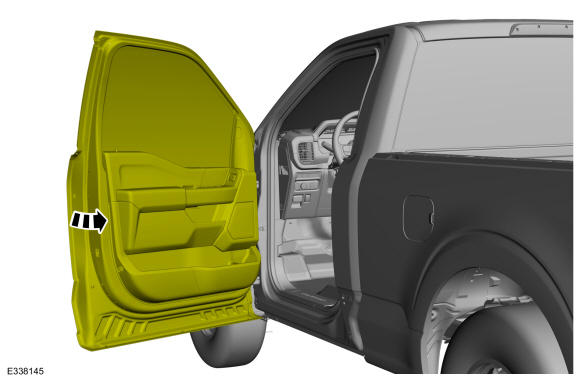

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment
Open the door.

Courtesy of FORD MOTOR COMPANY

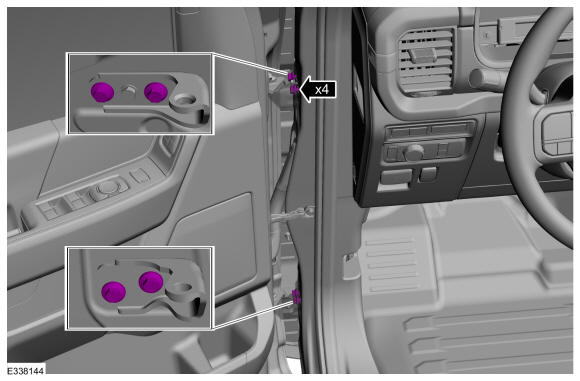

Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

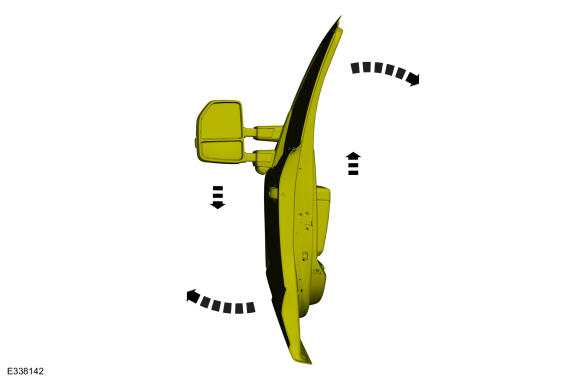

Carefully close the door.

Courtesy of FORD MOTOR COMPANY

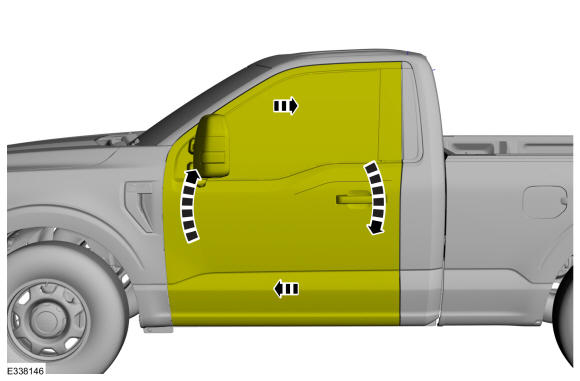

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY
NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the Appendix, see illustration below.

Tighten the bolts.

Torque

: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

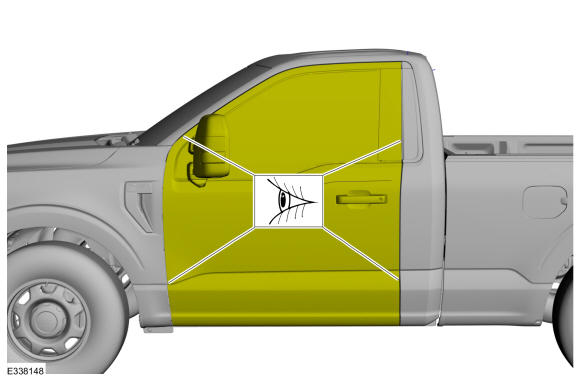

Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
