Pedestrian Alert System Speaker: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper. Refer to: Front Bumper .

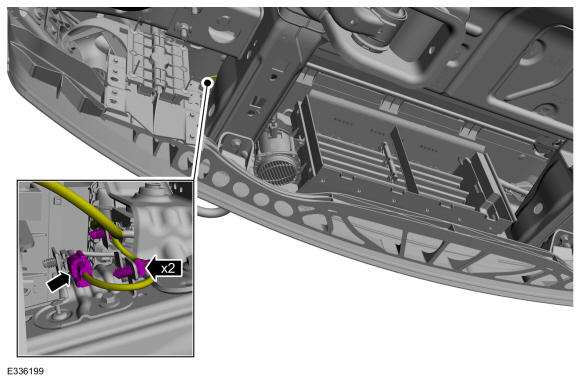

Disconnect the electrical connector and wire guides.

Courtesy of FORD MOTOR COMPANY

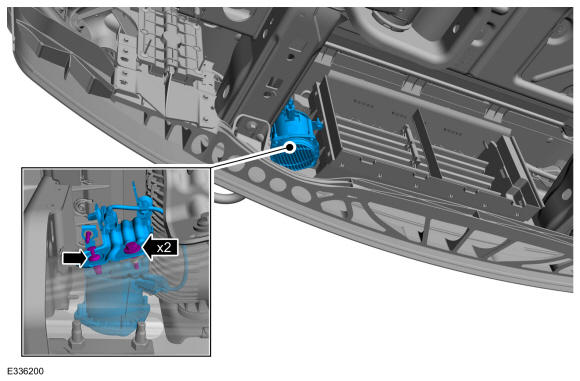

- Remove the bolts.
  Torque

  : 71 lb.in (8 Nm)
- Remove the push pin and the front pedestrian alert system speaker.

Courtesy of FORD MOTOR COMPANY
