Running Board: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
LH side shown in illustration, RH similar.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Regular Cab shown in illustration, SuperCab and Super Crew similar.

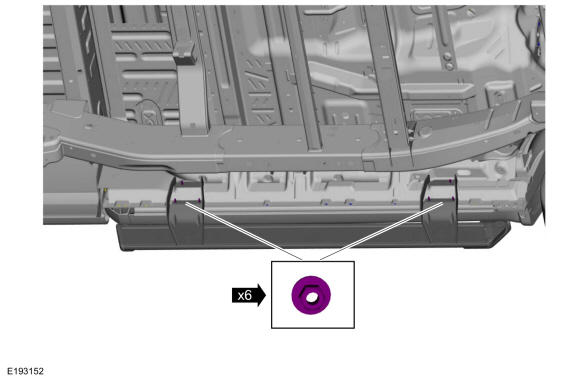

Remove the 6 nuts from the attachment brackets.
Torque
: 16 lb.ft (22 Nm)

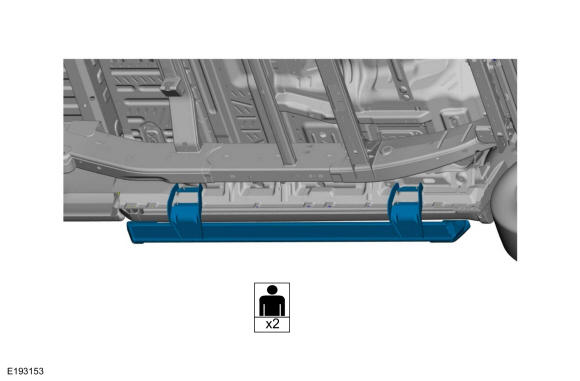

- Remove the running board assembly.
