Power Running Board (PRB): Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: LH side shown in illustration, RH side similar.

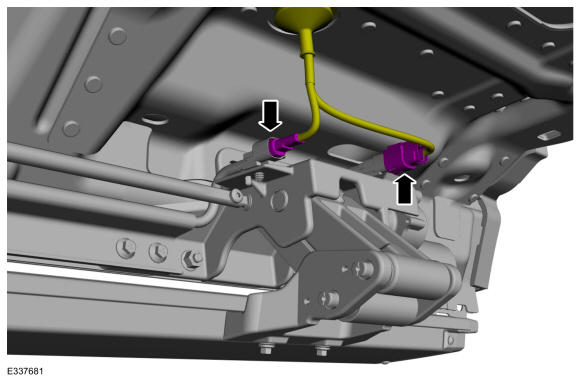

Disconnect the electrical connectors.
-
NOTE: This step requires the aid of another technician.

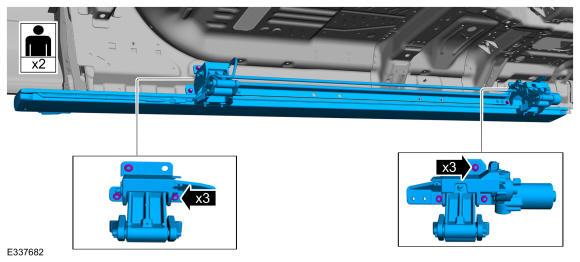

Remove the nuts from the attachment brackets and remove the power running board assembly.
Torque
: 16 lb.ft (22 Nm)
