Power Running Board (PRB) Hinge: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

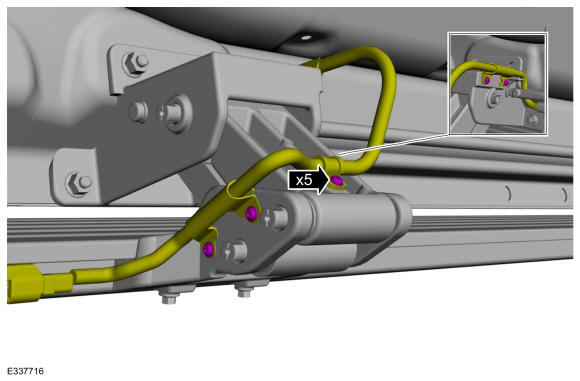

Remove the screws and position aside the wiring harness.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown in illustration, RH side similar.

NOTE: Support the running board with a jackstand.

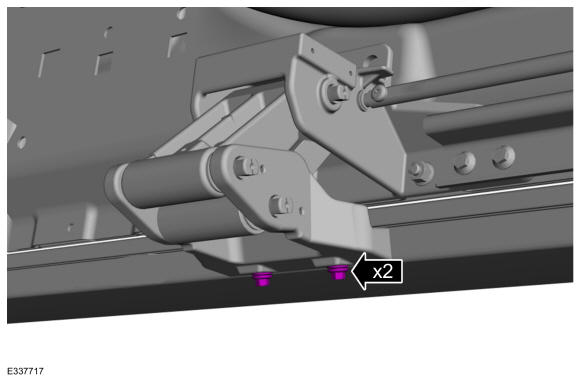

Remove the bolts.

Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

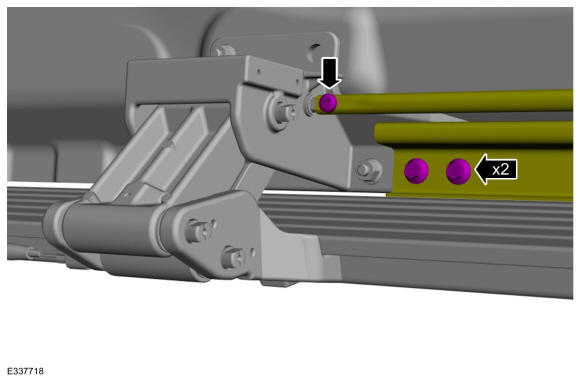

Remove the bolts and screw.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

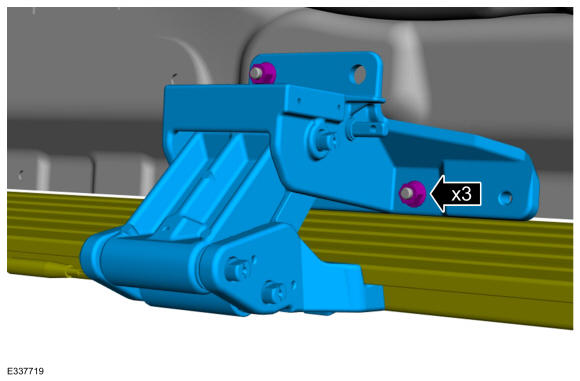

Remove the nuts and remove the bracket assembly.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
