Kick Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

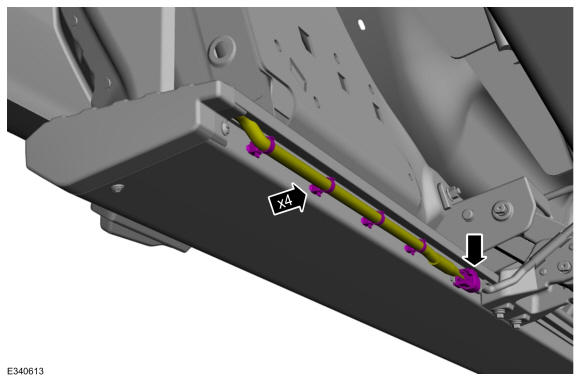

- Disconnect the electrical connector.
- Detach the wiring harness retainer clips.
Courtesy of FORD MOTOR COMPANY

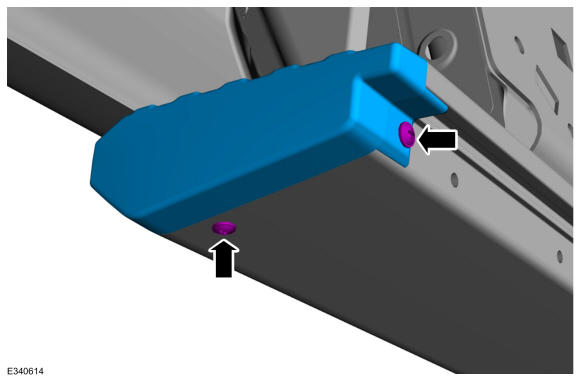

Remove the screw and running board end cap.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

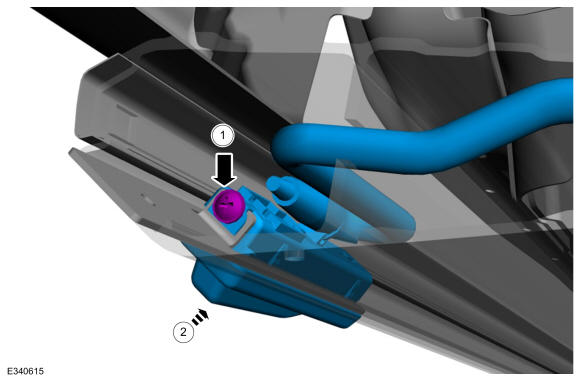

- Remove the screw.
  Torque

  : 22 lb.in (2.5 Nm)
- Push inside and remove the kick switch.

Courtesy of FORD MOTOR COMPANY
