Bodyside Moulding: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The following steps detail the various bodyside mouldings located on the cab and pickup bed. It is not all inclusive as trim levels may vary from vehicle to vehicle.
NOTE:
LH side views shown in illustration, RH side similar.

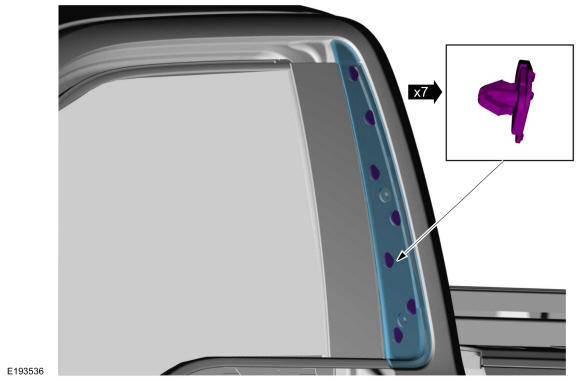

Cab Upper Moulding
- Using a non-marring trim tool, detach the 7 push pin retainers and remove the moulding. Use the General Equipment: Interior Trim Remover
Cab Lower Moulding

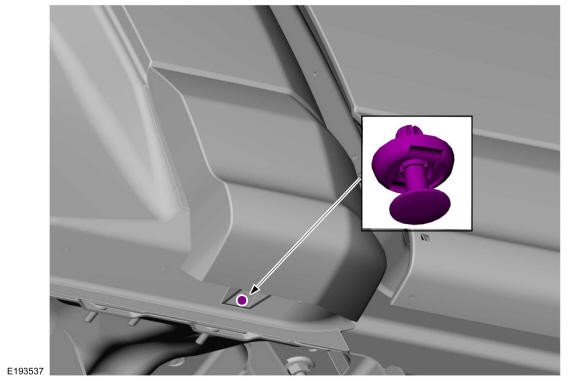

- Remove the push pin from the lower cab corner moulding.

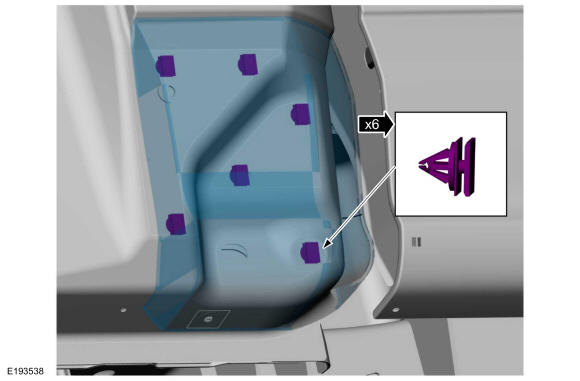

- Using a non-marring trim tool, detach the 6 push pin retainers and remove the lower cab corner moulding. Use the General Equipment: Interior Trim Remover
Pickup Bed Lower Moulding

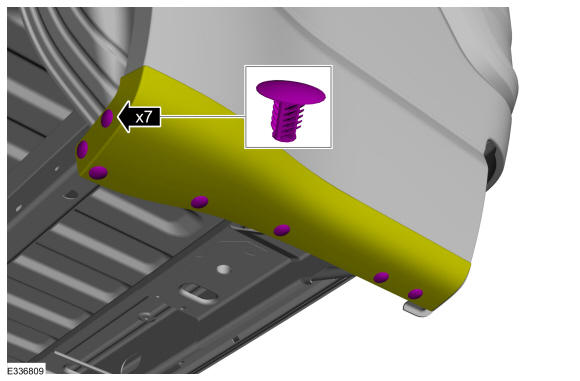

- Remove the 7 push pin retainers.
-
- Using a non-marring trim tool, detach the retainers from pickup bed. Use the General Equipment: Interior Trim Remover
- Remove the Pickup Bed Lower Moulding.

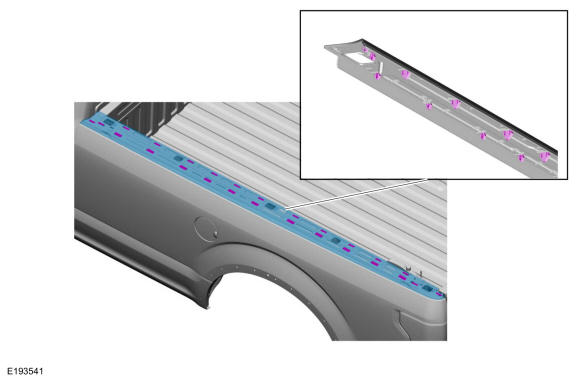

Pickup Bed Upper Rail Moulding
- Using a non-marring trim tool, carefully detach the retainers along the length of the moulding and remove the moulding. Use the General Equipment: Interior Trim Remover
