Side Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with short arm mirrors

NOTE: Analog camera is shown in illustration, digital camera is similar.

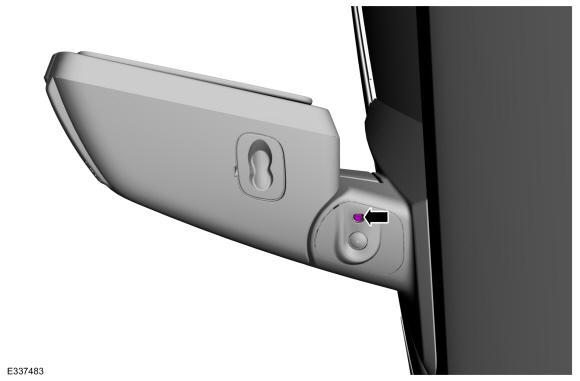

  1. Remove the side view camera mounting plate screw.
    GFD560601Courtesy of FORD MOTOR COMPANY

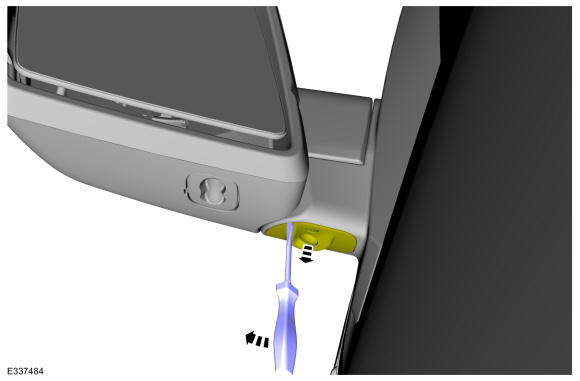

  2. Release the tab and position the side view camera mounting plate.

    Use the General Equipment: Flat Headed Screw Driver

    GFD560602Courtesy of FORD MOTOR COMPANY

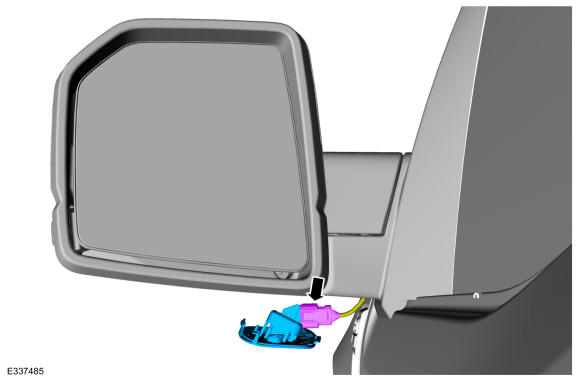

  3. Disconnect the electrical connector and remove the side parking aid camera and mounting plate as an assembly.
    GFD560603Courtesy of FORD MOTOR COMPANY

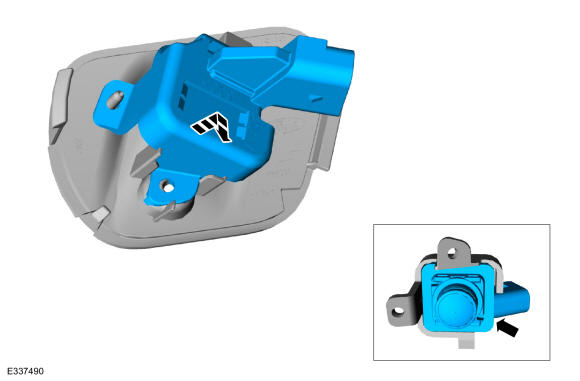

  4. Remove the side parking aid camera and bracket.

    • Separate and remove the side parking aid camera.

    GFD560604Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with long arm mirrors

  5. Remove the exterior mirror. Refer to: Exterior Mirror - Vehicles With: Long Arm Mirrors .

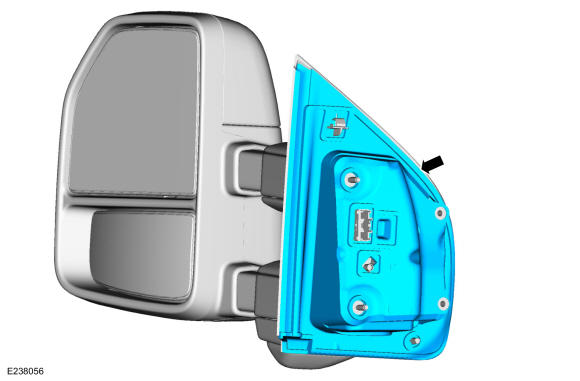

  6. Remove the exterior mirror weather shield.
    GFD560605Courtesy of FORD MOTOR COMPANY

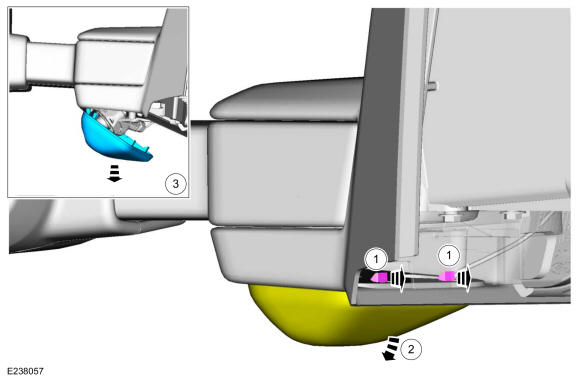

    1. Using a suitable tool, release the locking tabs.
    2. Position the inside edge of the cover.
    3. Remove the side parking aid camera cover.
    GFD560606Courtesy of FORD MOTOR COMPANY

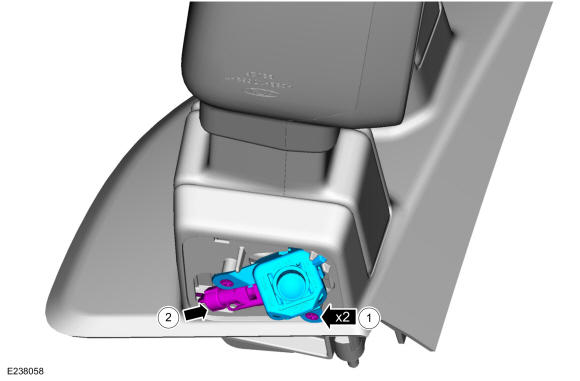

  8. Remove the side parking aid camera assembly.

    1. Remove the screws.
    2. Disconnect the connector.

    GFD560607Courtesy of FORD MOTOR COMPANY

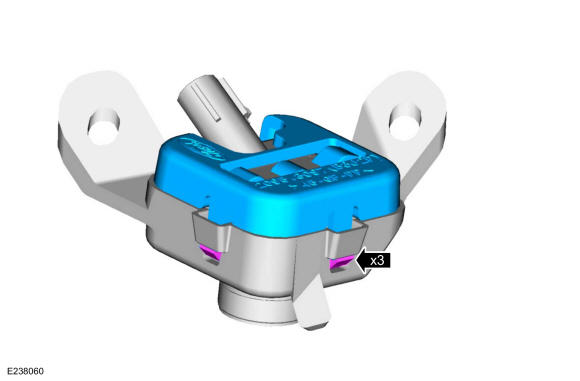

  9. Release the locking tabs and remove the upper camera bracket.
    GFD560608Courtesy of FORD MOTOR COMPANY

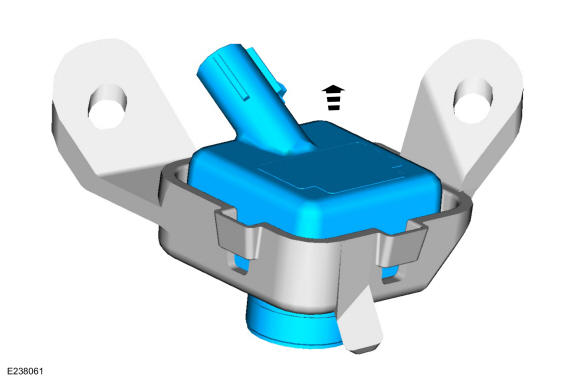

  10. Remove the side parking aid camera.
GFD560609Courtesy of FORD MOTOR COMPANY
