Rear Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

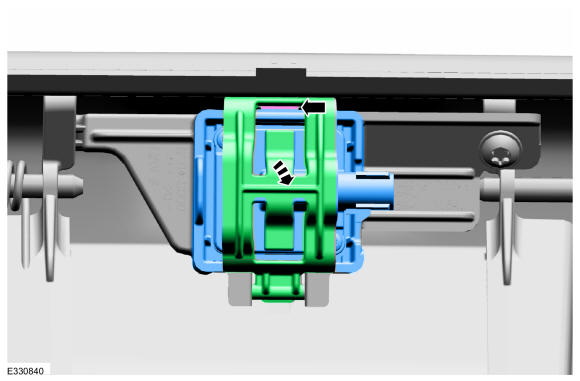

Vehicles equipped with tailgate release handle mounted analog cameras
- Remove the tailgate release handle. Refer to: Tailgate Release Handle .
- Release the tab and remove the rear parking aid camera bracket.

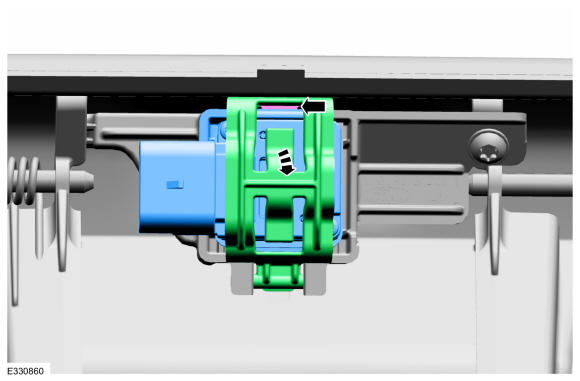

Vehicles equipped with tailgate release handle mounted digital cameras
- Remove the tailgate release handle. Refer to: Tailgate Release Handle .
- Release the tab and remove the rear parking aid camera bracket.

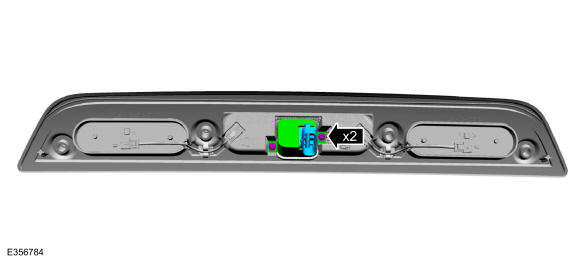

Vehicles with high mounted stoplamp with camera
-
NOTE: To prevent damage to the center high mounted stop lamp connectors, refer to removal details in the referenced procedure.
Remove the high mounted stoplamp. Refer to: High Mounted Stoplamp .
- Remove the screws, the bracket and the high mounted stoplamp camera.
