Front Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the radiator grille. Refer to: Radiator Grille .
- Extend the front camera washer nozzle door, release the tabs and remove the washer nozzle door.
- Remove the screws and the front camera washer and bracket as an assembly.

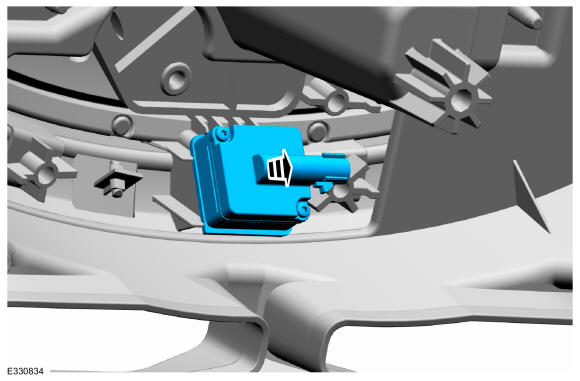

- Remove the front parking aid camera.
