System Diagram

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

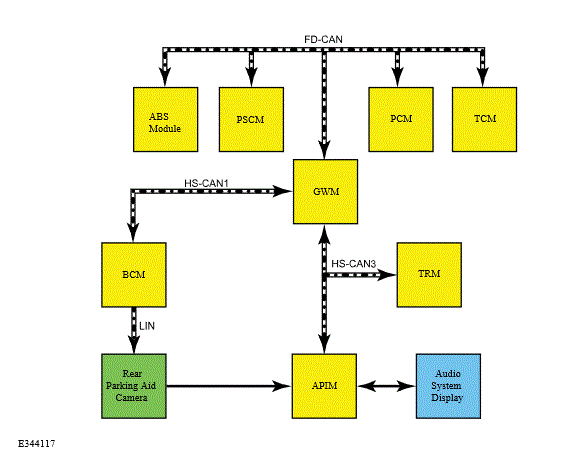

Analog Rear Parking Aid Camera

G00607445Courtesy of FORD MOTOR COMPANY

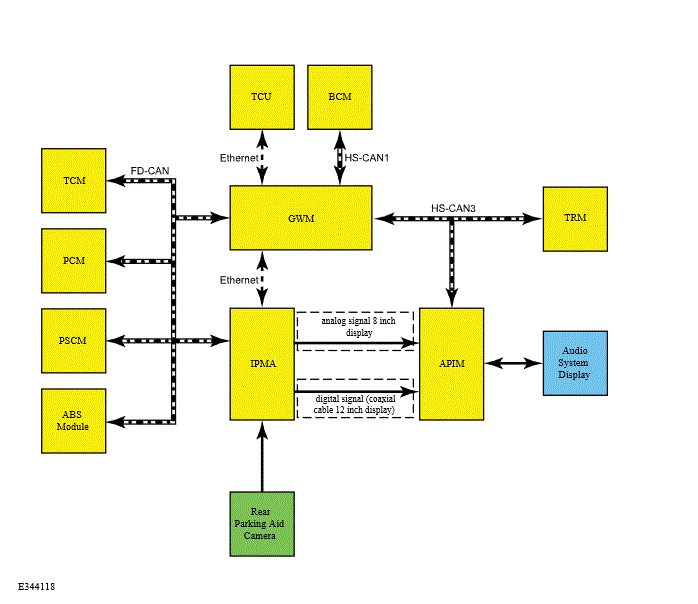

Digital Rear Parking Aid Camera

G00607446Courtesy of FORD MOTOR COMPANY
