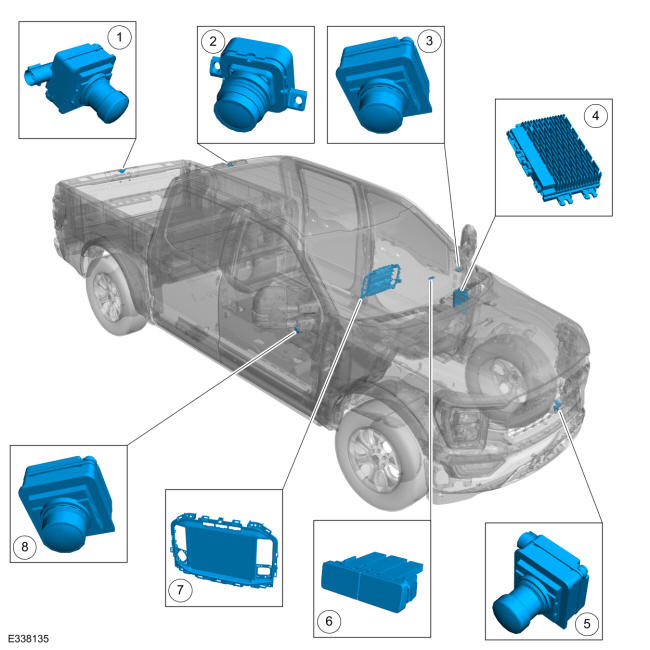

Parking Aid - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Rear parking aid camera |
| 2 |
Center high mount stop lamp (CHMSL) camera |
| 3 |
LH side parking aid camera |
| 4 |
IPMA |
| 5 |
Front parking aid camera |
| 6 |
Camera selection switch |
| 7 |
Audio system display |
| 8 |
RH side parking aid camera |
