Rear Bumper: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

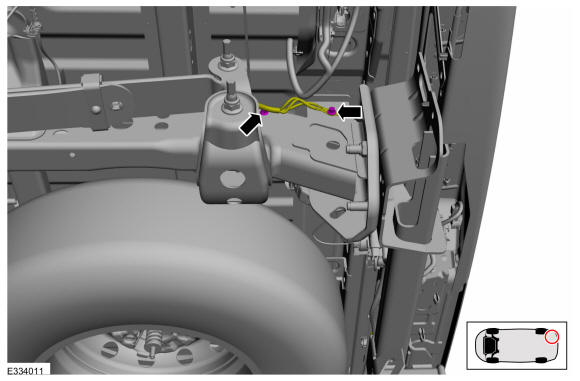

- Remove the bolt, separate the wiring harness retainer and position the wiring harness aside.
Torque
: 106 lb.in (12 Nm)

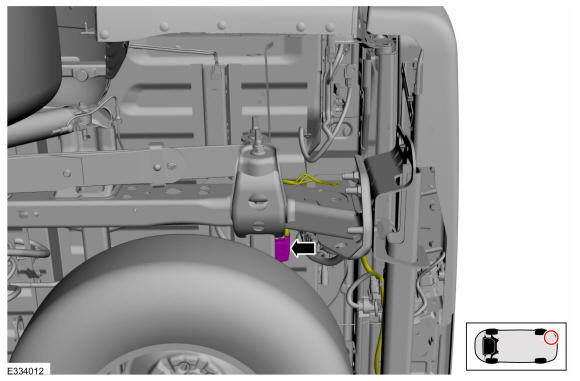

- Disconnect the rear bumper wiring harness connector.
Vehicles Without: Trailer Tow

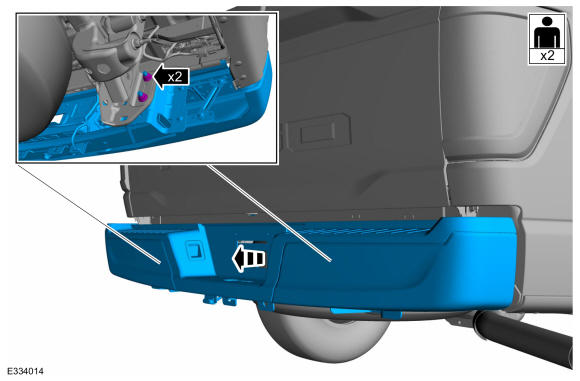

- With the help of an assistant. Remove the nuts and the rear bumper assembly.
Torque
: 129 lb.ft (175 Nm)
Vehicles With: Trailer Tow

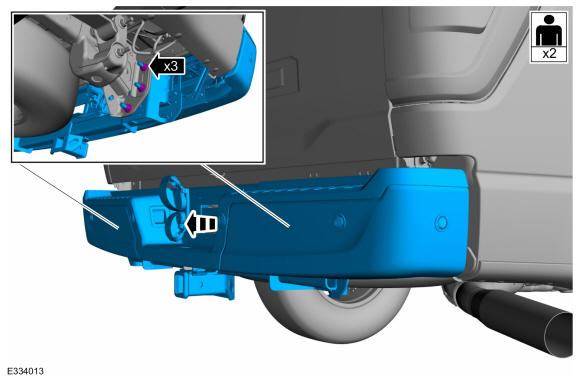

- With the help of an assistant. Remove the nuts and the rear bumper assembly.
Torque
: 129 lb.ft (175 Nm)
