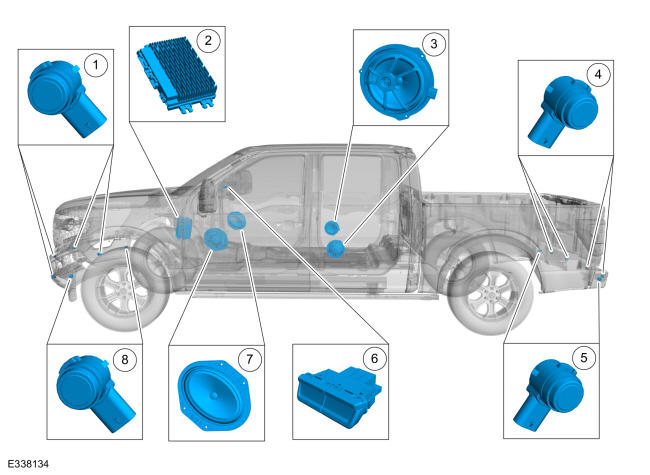

Parking Aid - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front parking aid sensors |
| 2 |
IPMA |
| 3 |
Rear speakers |
| 4 |
Rear parking aid sensors |
| 5 |
Rear side sensors |
| 6 |
Parking aid switch/active park assist switch |
| 7 |
Front speakers |
| 8 |
Front active park assist sensors |
