Seatbelt Shoulder Height Adjuster - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) shown in illustration, RH (right-hand) similar.

Remove the upper B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .
NOTE: Do not use excessive force pulling the seatbelt shoulder height adjuster release latch when the front seatbelt retractor and pretensioner D-ring cover has been removed. Failure to follow this instruction may cause the release latch to be dislodged from the seatbelt shoulder height adjuster assembly.

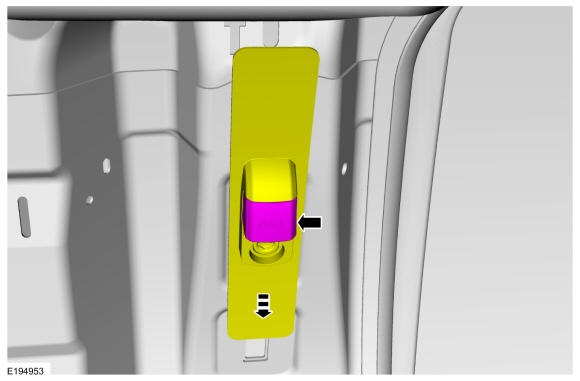

Pull the release latch and slide the seatbelt shoulder height adjuster down.

Courtesy of FORD MOTOR COMPANY

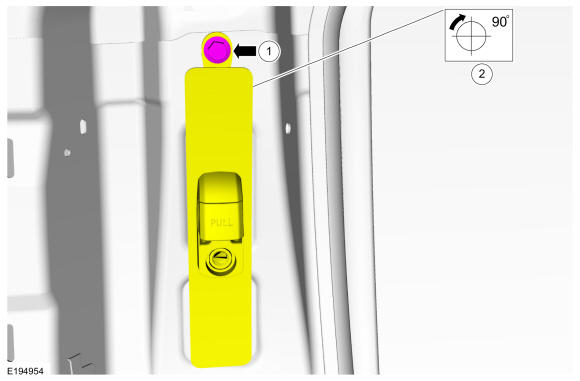

Position the seatbelt shoulder height adjuster.
1. Remove the bolt.
  Torque

  : 30 lb.ft (40 Nm)
2. Rotate the seatbelt shoulder height adjuster 90 degrees clockwise.
Courtesy of FORD MOTOR COMPANY

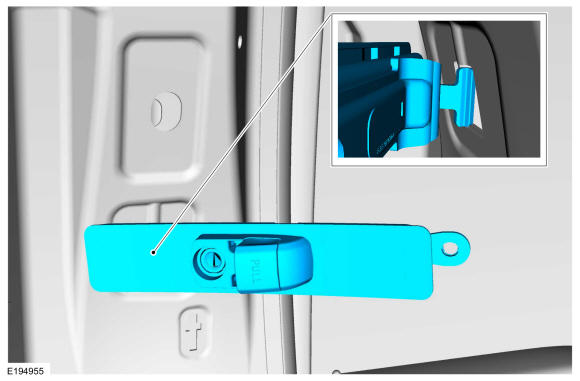

Detach the lower tab and remove the seatbelt shoulder height adjuster.

Courtesy of FORD MOTOR COMPANY
