Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SuperCrew shown in illustration, SuperCab similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the load space trim panel. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .
If equipped. Remove the subwoofer speaker. Refer to: Subwoofer Speaker .

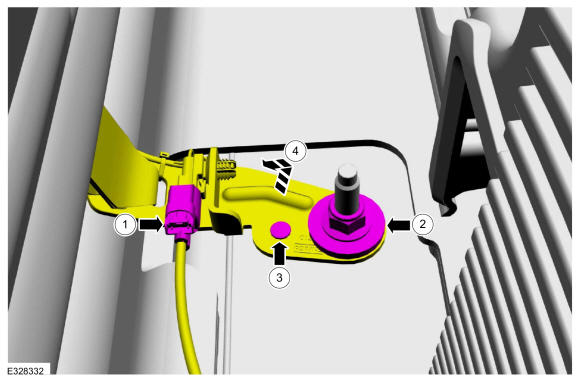

Position the rear center seatbelt anchor/buckle assembly aside.
1. Disconnect the electrical connector.
2. Remove the nut.
  Torque

  : 59 lb.ft (80 Nm)
3. Remove the pin-type retainer.
4. Position the rear center seatbelt anchor/buckle assembly aside.
Courtesy of FORD MOTOR COMPANY

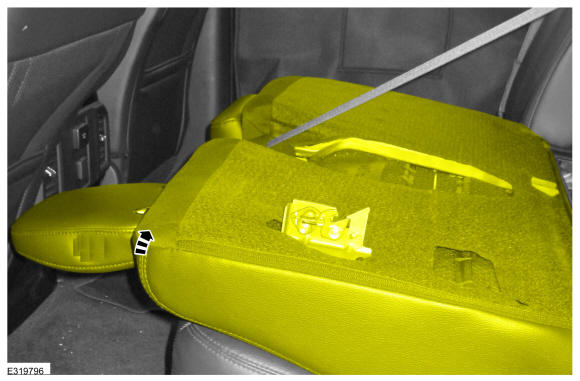

Lift the rear seat backrest up without engaging the latch.

Courtesy of FORD MOTOR COMPANY

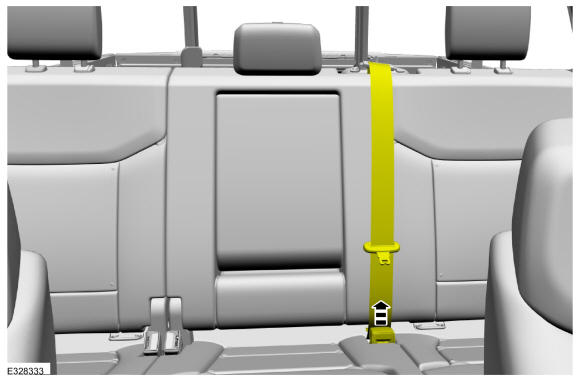

Pull the rear center seatbelt anchor/buckle assembly through the seat cushion.

Courtesy of FORD MOTOR COMPANY

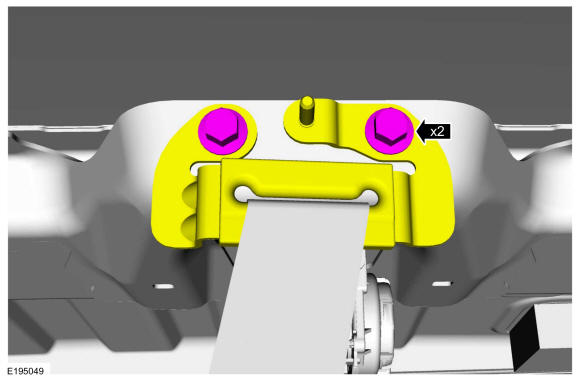

Remove the bolts and position the seatbelt guide aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

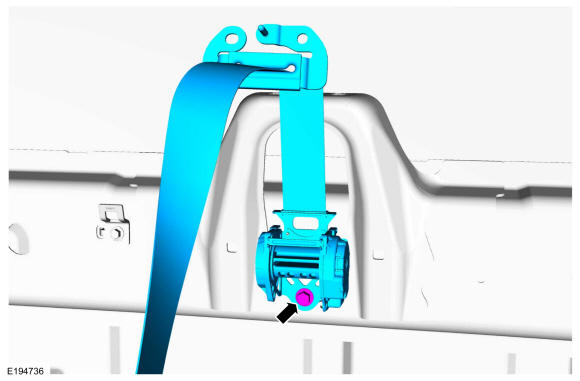

Remove the bolt and the seatbelt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
