Rear Center Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SuperCrew shown in illustration, SuperCab similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH rear seat. Refer to: Rear Seat RH - SuperCab . Refer to: Rear Seat RH - SuperCrew .

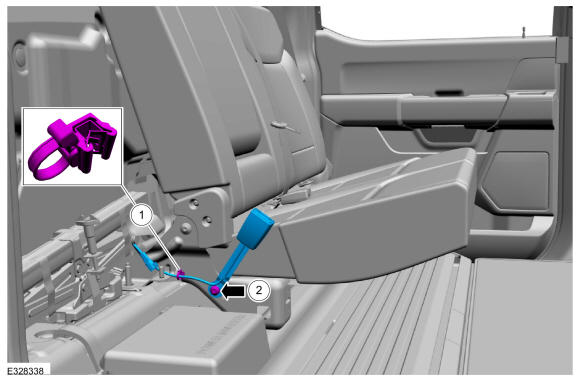

Remove the rear center seatbelt buckle.
1. Detach the wiring harness retainer.
2. Remove the bolt.
  Torque

  : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
