Front Seatbelt Retractor and Pretensioner - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) shown in illustration, RH (right-hand) similar.

WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the lower B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .

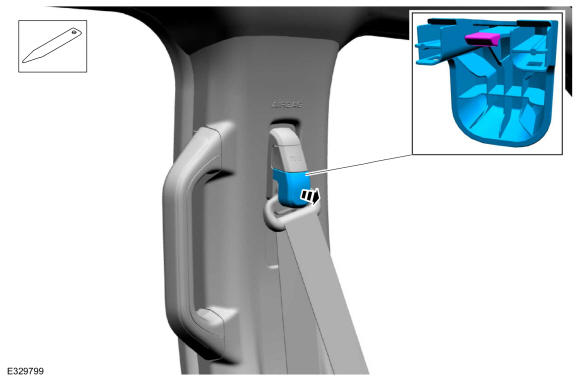

Remove the front seatbelt retractor and pretensioner D-ring cover.

Courtesy of FORD MOTOR COMPANY

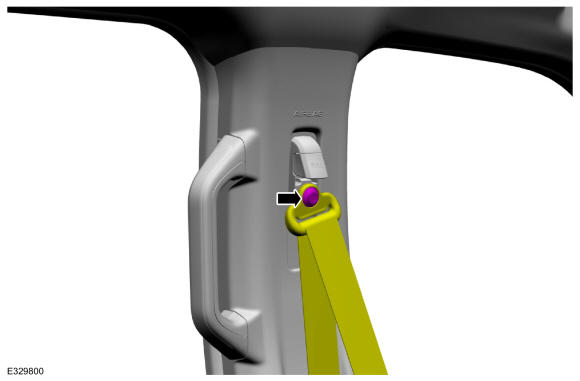

Remove the bolt and position the front seatbelt retractor and pretensioner D-ring aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

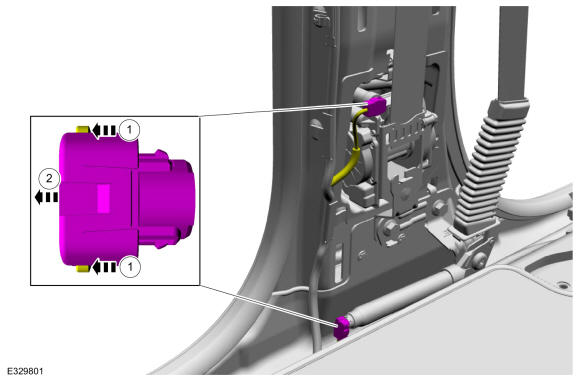

Disconnect the front seatbelt retractor pretensioner and anchor pretensioner electrical connectors and position aside.
1. Raise the locking tabs of the electrical connector.
2. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

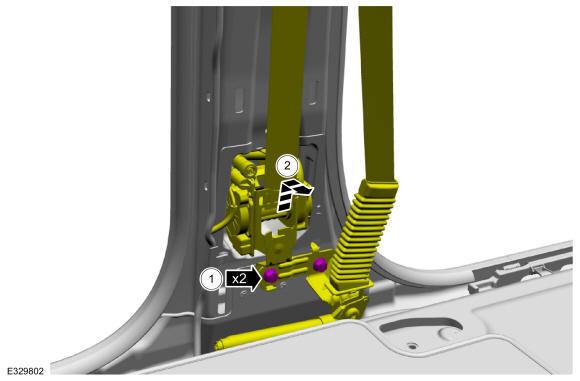

Position the front seatbelt retractor and pretensioner.
- Remove the bolts.
  Torque

  : 30 lb.ft (40 Nm)
- Position the front seatbelt retractor up and out.
Courtesy of FORD MOTOR COMPANY

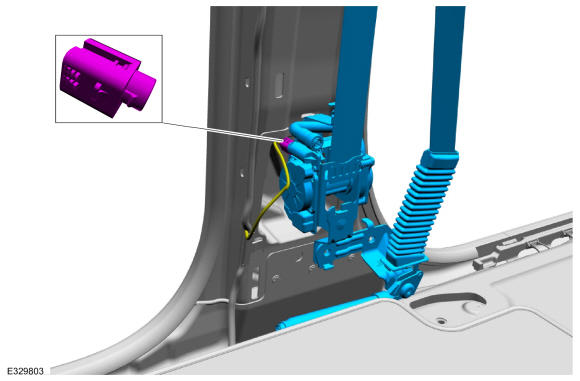

Disconnect the load limiter electrical connector and remove the front seatbelt retractor and pretensioner.

Courtesy of FORD MOTOR COMPANY
