Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

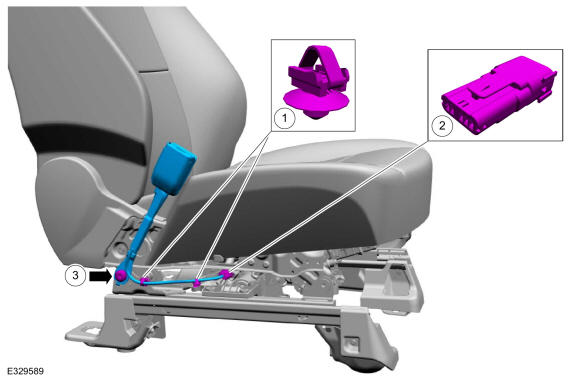

NOTE: Driver seat shown in illustration, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
Remove the seatbelt buckle.
1. Detach the wiring harness retainers.
2. Disconnect the electrical connector.
3. Remove the bolt and the seatbelt buckle.
  Torque

  : 30 lb.ft (40 Nm)
