Front Center Seatbelt Retractor - SuperCab/SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .
  2. Remove the front center seat backrest. Refer to: Front Center Seat Backrest - SuperCab/SuperCrew .
  3. Remove the front center seat backrest cover. Refer to: Front Center Seat Backrest Cover - SuperCab/SuperCrew .
  4. Remove the backrest foam while positioning the seatbelt through the foam opening.
    GFD562345Courtesy of FORD MOTOR COMPANY

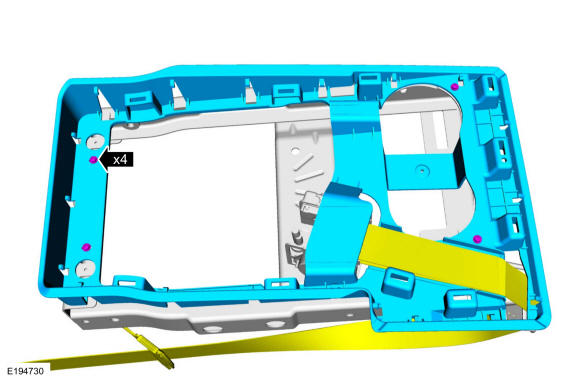

  5. Remove the screws and the backrest/armrest bracket while positioning the seatbelt through the bracket opening.
    GFD562346Courtesy of FORD MOTOR COMPANY

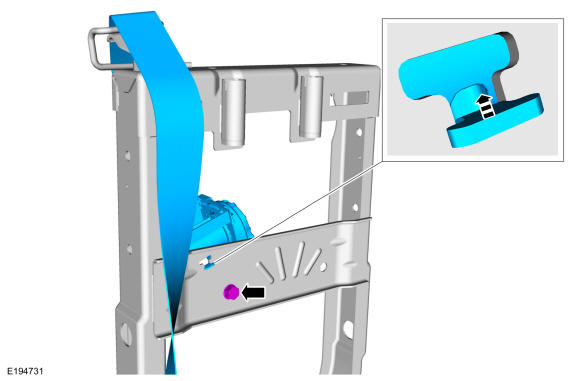

  6. Remove the bolt and the seatbelt retractor.

    Torque

    : 30 lb.ft (40 Nm)

GFD562347Courtesy of FORD MOTOR COMPANY
