Front Center Seatbelt Retractor - Regular Cab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

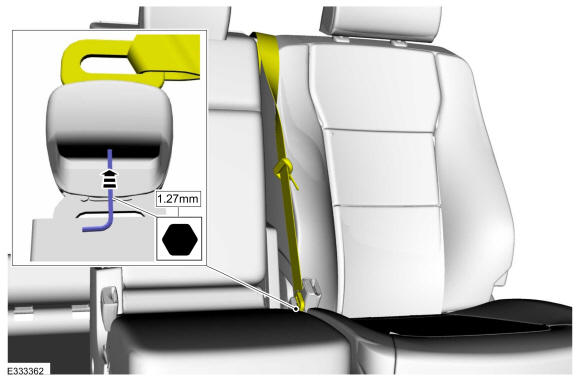

Insert a 1.27 mm (0.050 inch) hex key and release the front center seatbelt anchor.

Courtesy of FORD MOTOR COMPANY
Remove the load space trim panel. Refer to: Loadspace Trim Panel - Regular Cab .

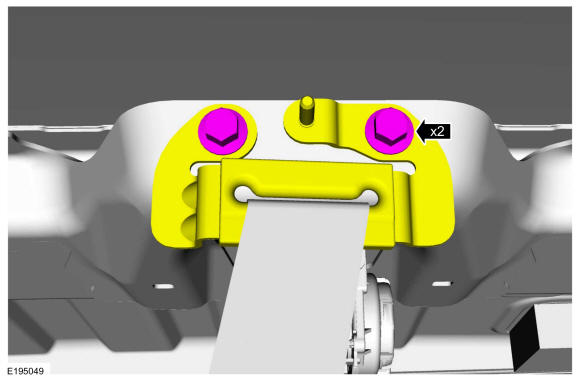

Remove the bolts and position the front center seatbelt guide aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

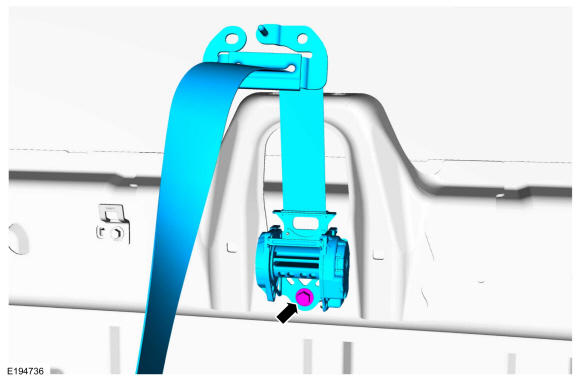

Remove the bolt and front center the seatbelt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
