Front Center Seatbelt Buckle - Regular Cab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .

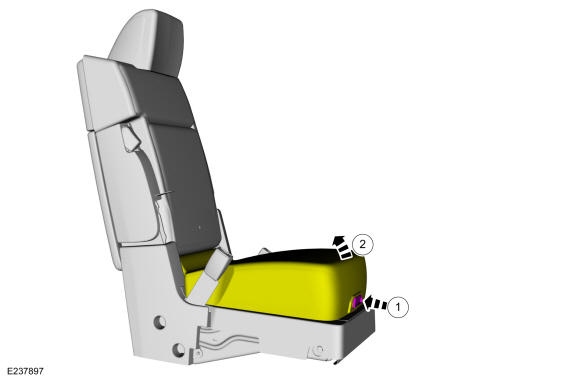

  2. Lift the front center seat cushion.

    1. Release the front center seat cushion latch.
    2. Lift the front center seat cushion.

    GFD562323Courtesy of FORD MOTOR COMPANY

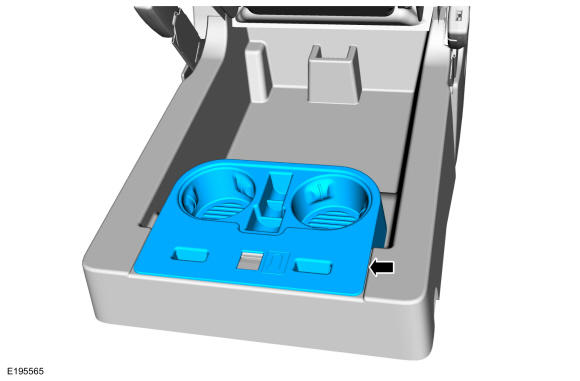

  3. Remove the front center seat cup holder.
    GFD562324Courtesy of FORD MOTOR COMPANY

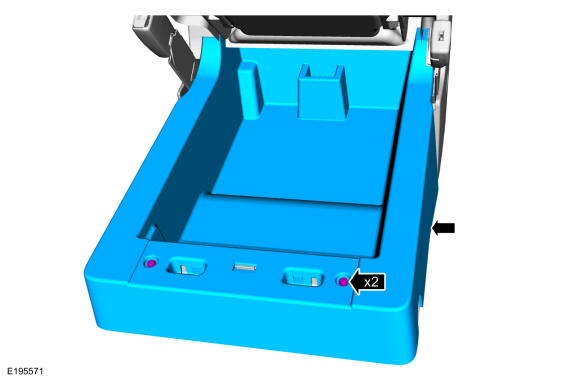

  4. Remove the screws and the front center seat storage tray.
    GFD562325Courtesy of FORD MOTOR COMPANY

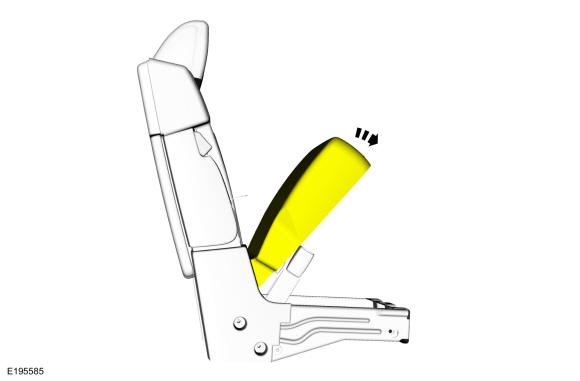

  5. Lower the front center seat cushion.
    GFD562326Courtesy of FORD MOTOR COMPANY

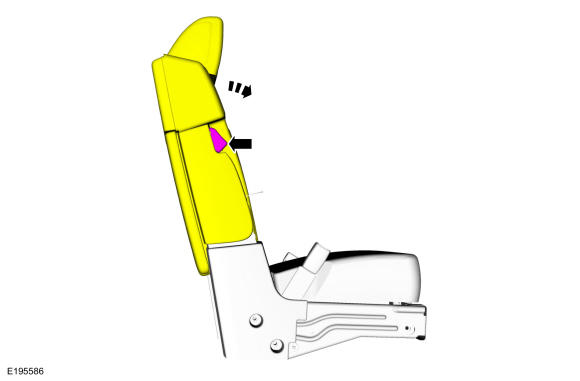

  6. Release the seat latch and fold the front center seat backrest down.
    GFD562327Courtesy of FORD MOTOR COMPANY

    Front center seatbelt buckle

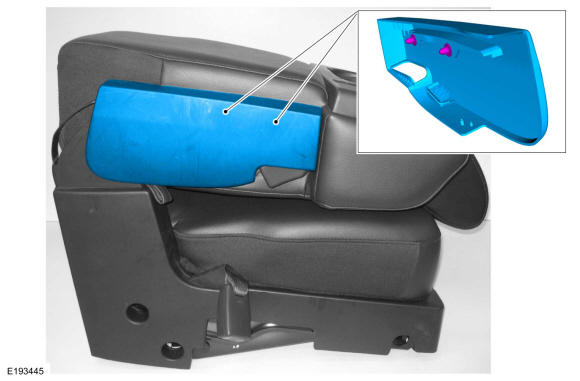

  7. Remove the front center seat backrest latch cover.
    GFD562328Courtesy of FORD MOTOR COMPANY

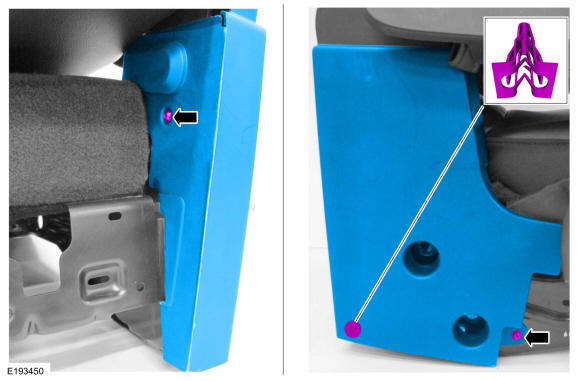

  8. Remove the screws, release the retaining clip and remove the front center seat RH side shield.
    GFD562329Courtesy of FORD MOTOR COMPANY

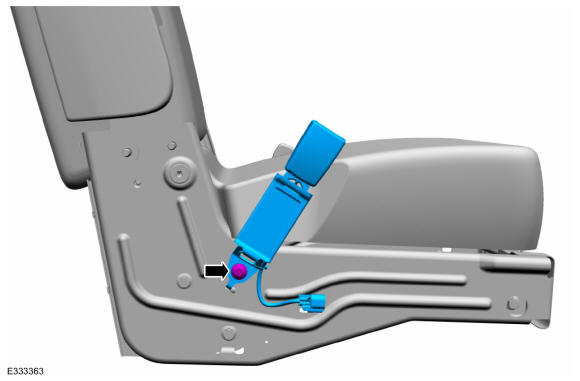

  9. Remove the bolt and the front center seatbelt buckle.

    Torque

    : 30 lb.ft (40 Nm)

    GFD562330Courtesy of FORD MOTOR COMPANY

    Detachable front center seatbelt anchor

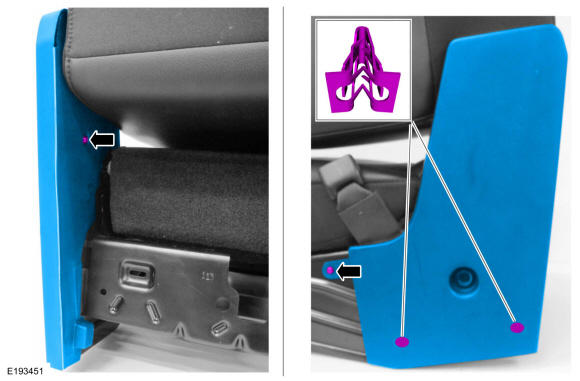

  10. Remove the screws, release the retaining clips and remove the front center seat LH side shield.
    GFD562331Courtesy of FORD MOTOR COMPANY

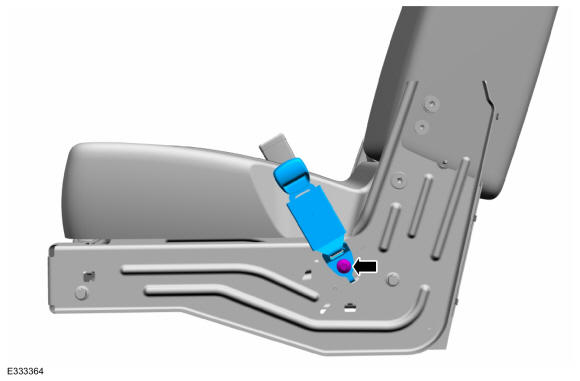

  11. Remove the bolt and the detachable front center seatbelt anchor.

    Torque

    : 30 lb.ft (40 Nm)

GFD562332Courtesy of FORD MOTOR COMPANY
