Child Safety Seat Tether Anchor - SuperCab/SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

SuperCab

NOTE: The striker should be in its lowest position for the latch to engage.

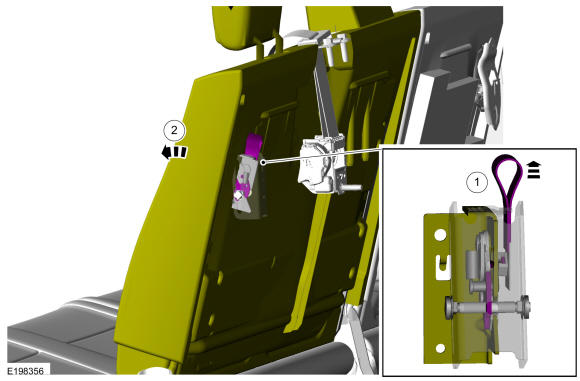

Lower the LH rear seat backrest.
1. Pull the release strap and release the latch from the striker.
2. Lower the LH rear seat backrest.
Courtesy of FORD MOTOR COMPANY

SuperCrew
NOTE: The rear seat backrest latch is only accessible when the rear seat cushion is raised.

NOTE: The striker should be in its lowest position for the latch to engage.

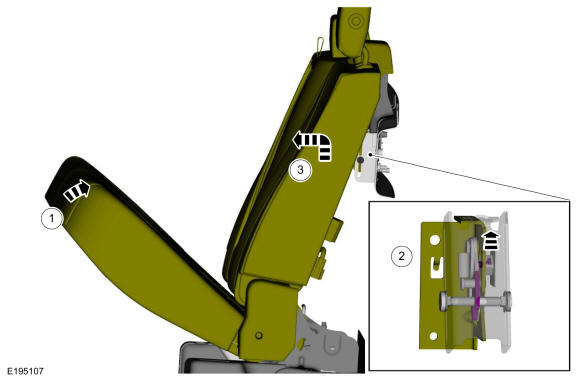

Fold the LH rear seat backrest down.
1. Raise the LH rear seat cushion.
2. Release the seat latch.
3. Fold the LH rear seat backrest down.
Courtesy of FORD MOTOR COMPANY

SuperCab and SuperCrew

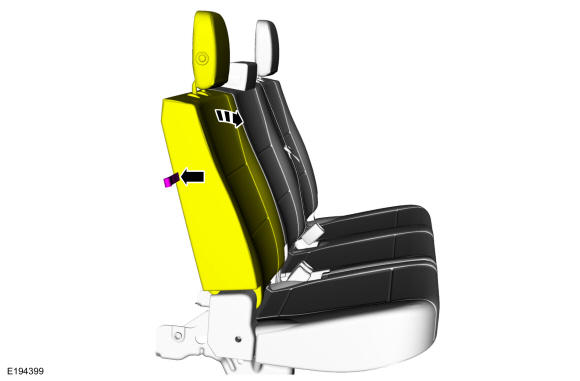

Release the seat latch and fold the RH rear seat backrest down.

Courtesy of FORD MOTOR COMPANY

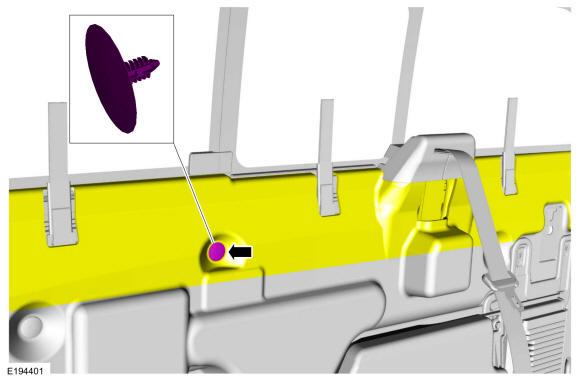

Remove the pin-type retainer and position the load space trim panel aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The load space trim panel has been removed for clarity.

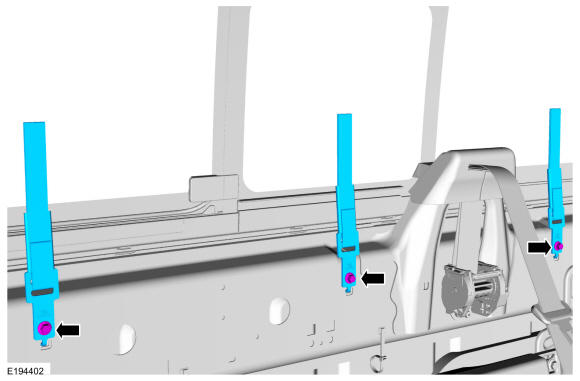

Remove the bolt(s) and the child safety seat tether anchor(s).

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
