Component Location - Blind Spot Monitoring System (BLIS®)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

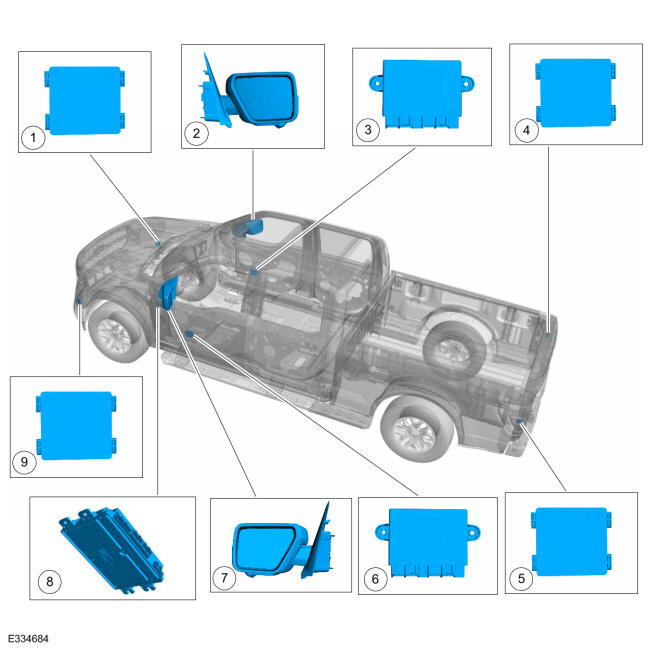

GFD561146Courtesy of FORD MOTOR COMPANY
Item Description
1 SODCMD
2 RH Exterior Mirror
3 PDM
4 SODR
5 SODL
6 DDM
7 LH Exterior Mirror
8 IPMA
9 SODCMC
