Electric Booster Heater: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  2. Remove the instrument panel. Refer to: Instrument Panel .

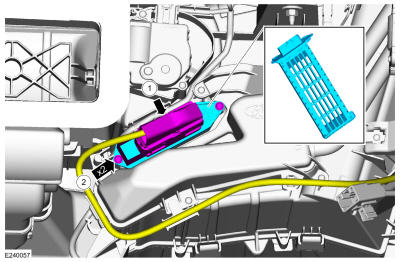

    1. Disconnect the electrical connector.
    2. Remove the retainers and the electric booster heater.
GFD560552Courtesy of FORD MOTOR COMPANY
