Hybrid vehicles

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

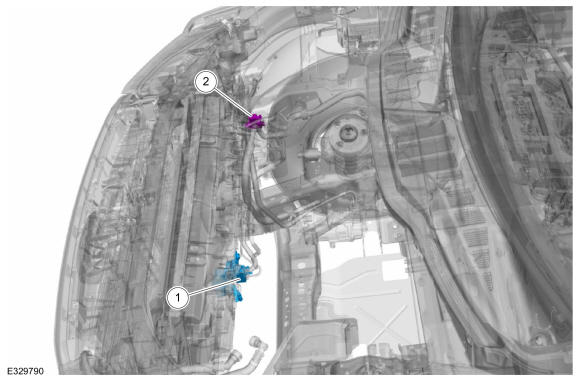

GFD560550Courtesy of FORD MOTOR COMPANY
Item Description
1 High voltage battery coolant cooler
2 Front evaporator shutoff valve
