Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location: Notes
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

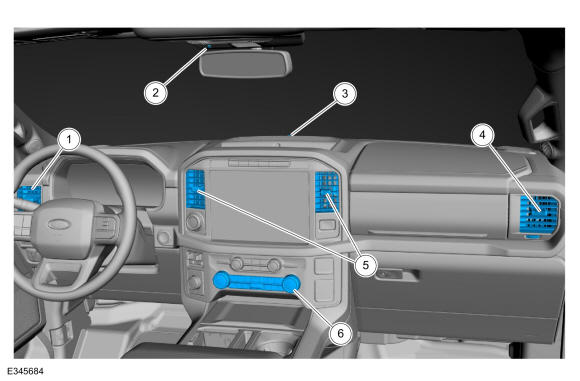

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Driver Side Register |
| 2 |
In-Vehicle Temperature and Humidity Sensor |
| 3 |
Sunload Sensor |
| 4 |
Passenger Side Register |
| 5 |
Center Registers |
| 6 |
HVAC Module |

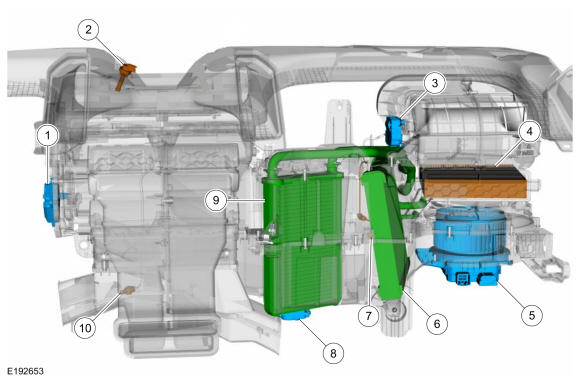

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Air Distribution Door Actuator |
| 2 |
Driver Side Register Air Discharge Temperature Sensor |
| 3 |
Air Inlet Door Actuator |
| 4 |
Cabin Air Filter |
| 5 |
Blower Motor Control Module |
| 6 |
Evaporator |
| 7 |
Evaporator Temperature Sensor |
| 8 |
Driver Temperature Door Actuator |
| 9 |
Heater Core |
| 10 |
Driver Side Footwell Air Discharge Temperature Sensor |
