3.5L Powerboost hybrid
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

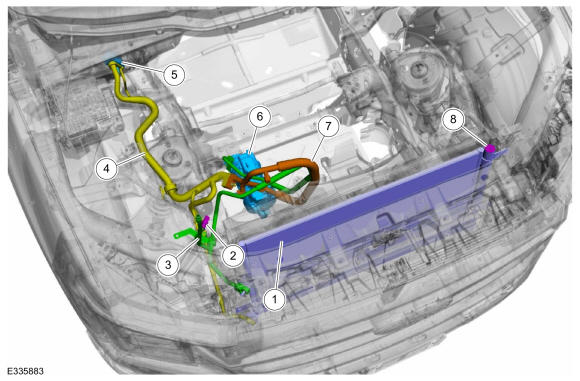

| Item |
Description |
| 1 |
Condenser |
| 2 |
A/C Pressure Transducer |
| 3 |
A/C Compressor Outlet Line |
| 4 |
Thermostatic Expansion Valve Manifold and Tube Assembly |
| 5 |
Thermostatic Expansion Valve |
| 6 |
A/C Compressor (electric) |
| 7 |
A/C Compressor Inlet Line |
| 8 |
Desiccant Bag |
