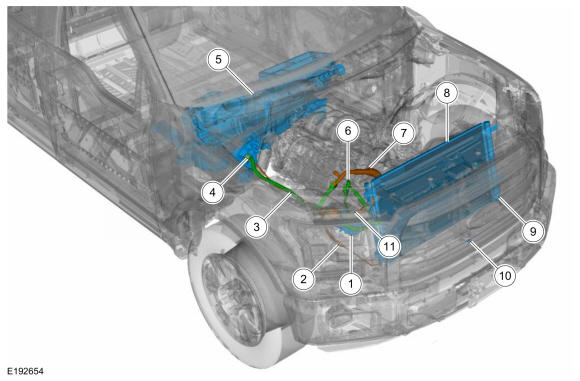

3.5L EcoBoost
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
A/C Compressor |
| 2 |
Condenser Outlet Line |
| 3 |
Evaporator Outlet Line |
| 4 |
Thermostatic Expansion Valve |
| 5 |
Climate Control Housing |
| 6 |
A/C Compressor Outlet Line |
| 7 |
A/C Compressor Inlet Line |
| 8 |
Condenser |
| 9 |
Desiccant Bag |
| 10 |
Ambient Air Temperature Sensor |
| 11 |
A/C Pressure Transducer |
