Removal And Installation: Tailgate: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

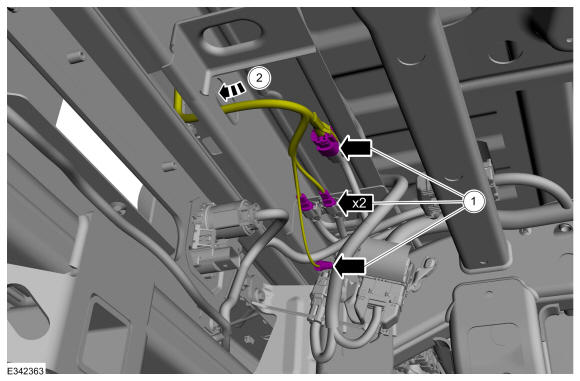

    1. Disconnect the electrical connectors from the main harness.
    2. Slide the harness through the box crossmember.
    GFD561370Courtesy of FORD MOTOR COMPANY

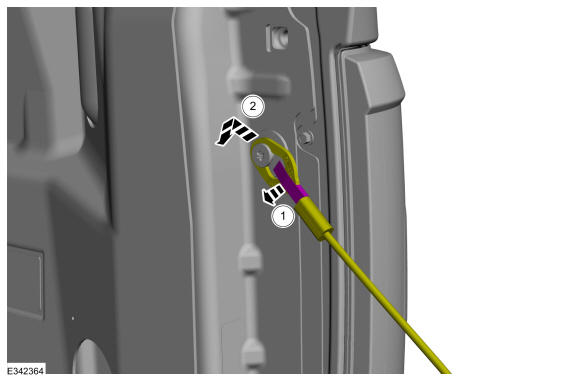

  2. Partially open and support the tailgate.

    1. On both sides. Release the tailgate support cable safety clip.
    2. On both sides. Disconnect the tailgate support cable from the anchor post.

    GFD561371Courtesy of FORD MOTOR COMPANY

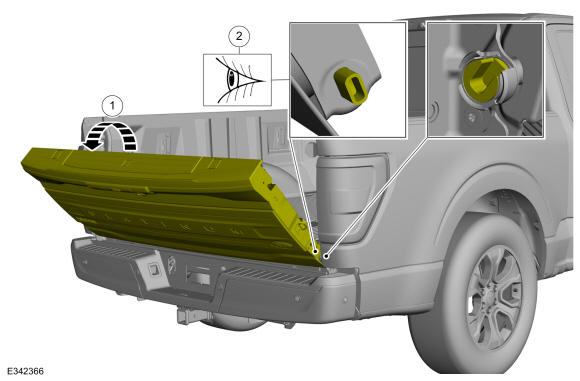

    1. Move the tailgate to approximately 45 degrees from vertical.
    2. Align the RH pivot to align with the opening in the hinge.
    GFD561372Courtesy of FORD MOTOR COMPANY

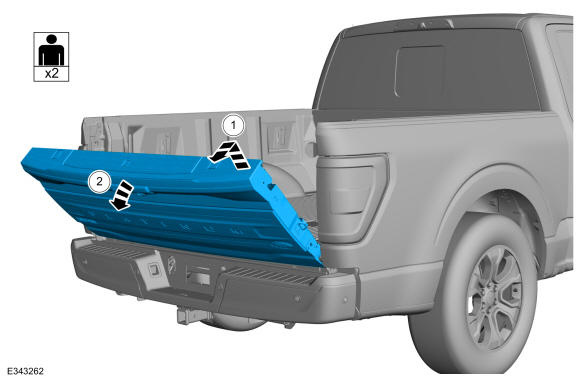

  4. Remove the tailgate.

    1. Lift the RH side of the tailgate up and out.
    2. Rotate the tailgate approximately 10 degree from close and remove it from the vehicle.

GFD561373Courtesy of FORD MOTOR COMPANY
