Removal And Installation: Tailgate: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tailgate.

    1. Position the tailgate so the LH tailgate pivot is close to the LH hinge and the tailgate is approximately 10 degrees from vertical. Keep the RH tailgate pivot close to the RH hinge, then slide the tailgate left to engage the LH pivot on the LH hinge.
    2. Position the tailgate so that it is approximately 41 degrees from vertical. Push the RH pivot onto the hinge.

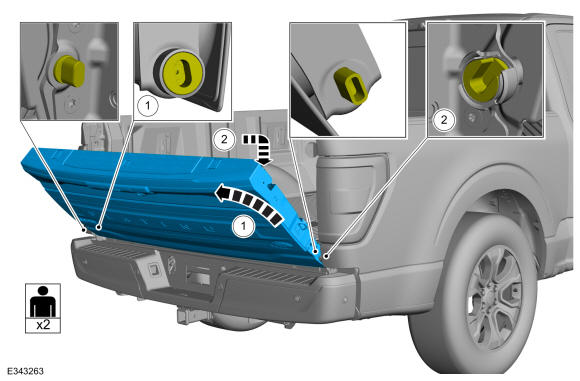

    GFD561374Courtesy of FORD MOTOR COMPANY
  2. On both sides. Connect the tailgate support cable to the anchor post.

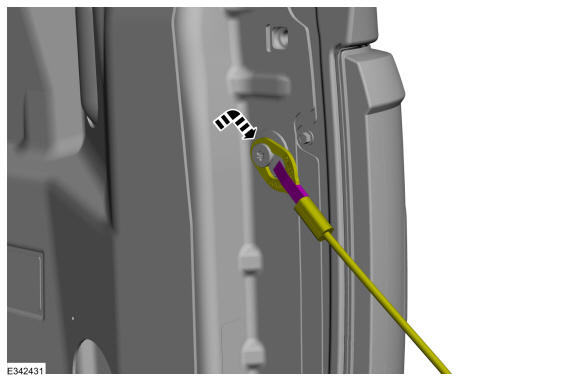

    GFD561375Courtesy of FORD MOTOR COMPANY
    1. Slide the harness through the box crossmember.
    2. Connect the electrical connectors to the main harness.

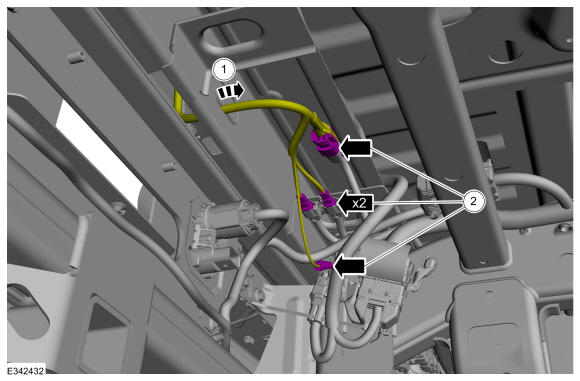

    GFD561376Courtesy of FORD MOTOR COMPANY
  4. If equipped, calibrate the rear view camera. Refer to: Parking Aid .
