Tailgate Step: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

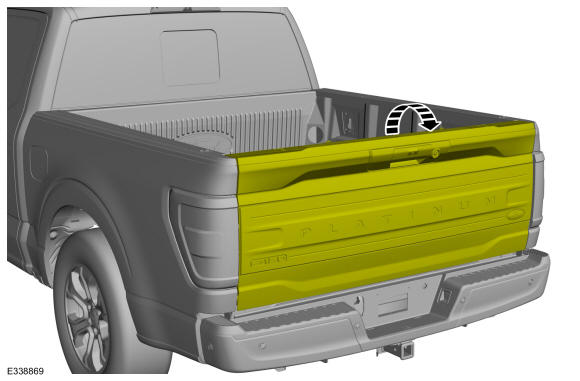

Lower the tailgate.

Courtesy of FORD MOTOR COMPANY

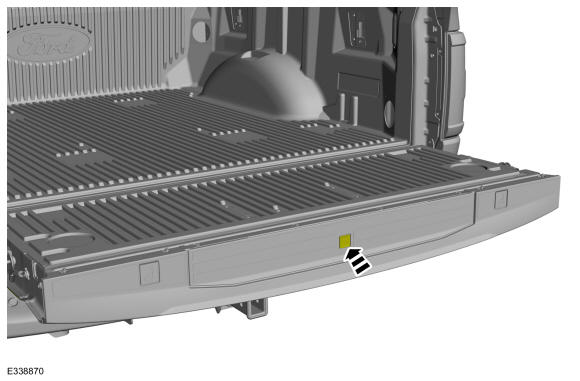

Push the tailgate step release button.

Courtesy of FORD MOTOR COMPANY

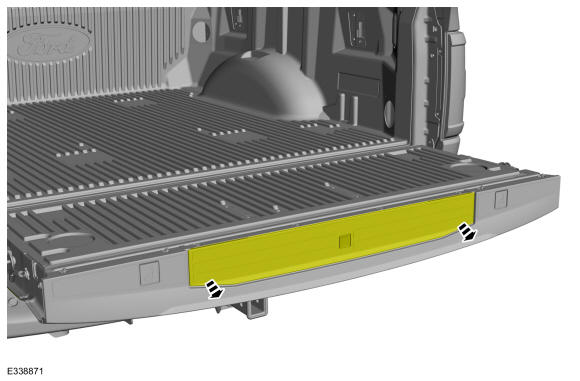

Open the tailgate step.

Courtesy of FORD MOTOR COMPANY

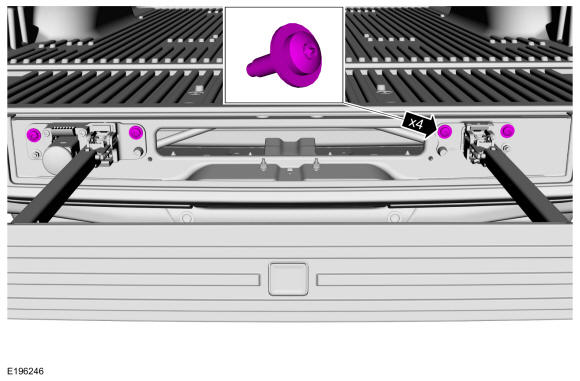

Remove the tailgate step inside bolts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

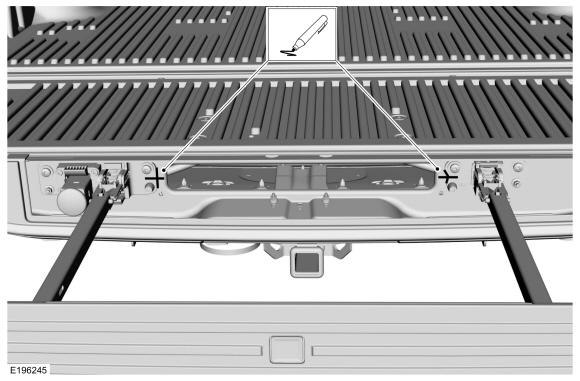

Index mark the tailgate step for alignment during installation.

Courtesy of FORD MOTOR COMPANY

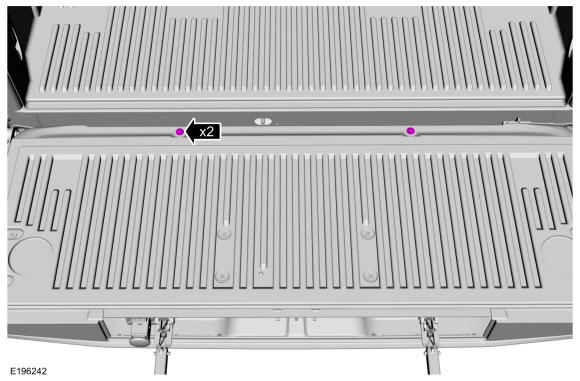

Remove the tailgate step upper bolts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

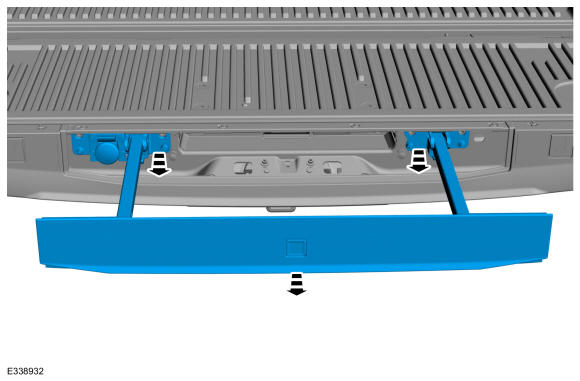

Remove the tailgate step.

Courtesy of FORD MOTOR COMPANY
