Rear Gate Trunk Module (RGTM): Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

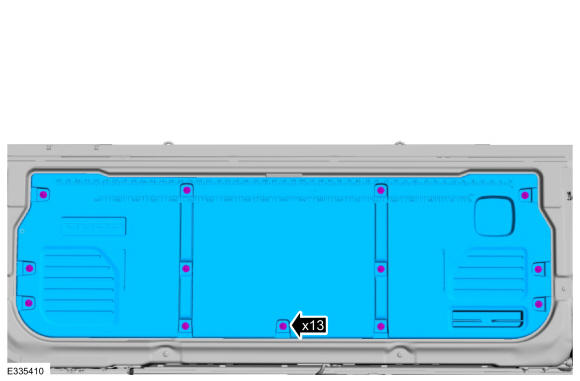

- Remove the screws and the power tailgate panel.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the RGTM screws.
 Courtesy of FORD MOTOR COMPANY
|
-

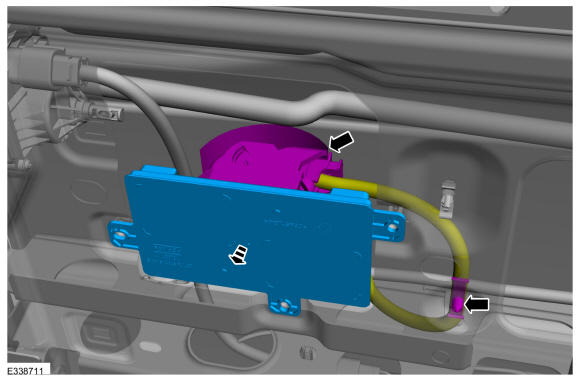

- Disconnect the RGTM electrical connector, detach the wiring harness retainer and remove the RGTM.
 Courtesy of FORD MOTOR COMPANY
|
